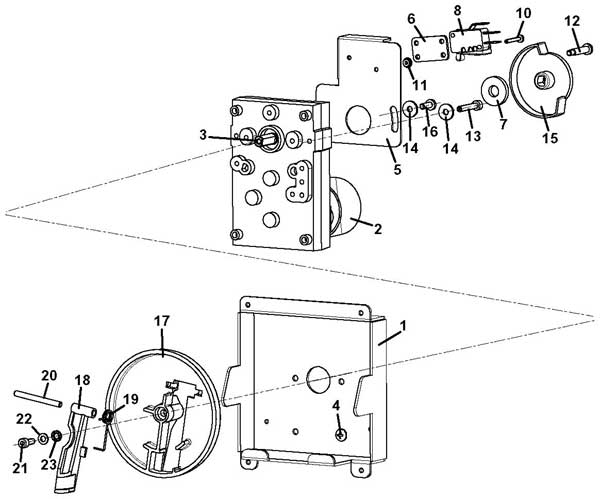

micro coffee group motor support
EC E
Руководство
| № | Артикул | Название | Примечание | Цена, ₽ | Добавить в корзину | Мин. заказ | В корзине |
|---|---|---|---|---|---|---|---|
| 1 | Z0260010128KE | MICRO BREWER MOTOR RED SUPPORT | 2 675.70 | 1 | 0 | ||
| 2 | Z0090002191R | § GEARBOX MOTOR 11RPM 24V DC | 10 264.23 | 1 | 0 | ||
| 3 | Z0090002191R | § GEARBOX MOTOR 11RPM 24V DC | 10 264.23 | 1 | 0 | ||
| 4 | VIT0000030 | SCREW HEAD TAP CAP M4X7 | 90.24 | 1 | 0 | ||
| 5 | Z0250008093 | MICRO PLATE | 384.43 | 1 | 0 | ||
| 6 | 4600010014 | SPACER | 39.71 | 1 | 0 | ||
| 7 | Z0250008091 | SPACER | 363.68 | 1 | 0 | ||
| 8 | ELE0001529 | MICROSWITCH WITH LEVER | 469.26 | 1 | 0 | ||
| 10 | VIT0000007 | SCREW HEAD TAP CAP M3X20 | 90.24 | 1 | 0 | ||
| 11 | VIT0004701 | NUT M3 | 90.24 | 1 | 0 | ||
| 12 | Z0250008126 | PIN M4 | 219.29 | 1 | 0 | ||
| 13 | VIT0005521 | SCREW HEX HEAD REC TAP M4X25 | 90.24 | 1 | 0 | ||
| 14 | VIT0003301 | WASHER 4,3X12X1,5 | 90.24 | 1 | 0 | ||
| 15 | Z0250008043 | MICRO GROUP READER DISK | 120.93 | 1 | 0 | ||
| 16 | VIT0000012 | SCREW HEAD TAP CAP M4X10 | 90.24 | 1 | 0 | ||
| 17 | Z0250008012 | MOTOR CRANK | 1 794.03 | 1 | 0 | ||
| 18 | Z0250008034 | HOOKING LEVER | 58.66 | 1 | 0 | ||
| 19 | Z0250008059 | SPRING | 267.12 | 1 | 0 | ||
| 20 | VIT0005205 | DOWEL PIN 4X40 | 90.24 | 1 | 0 | ||
| 21 | VIT0005508 | SCREW HEX HEAD REC TAP M4X12 | 90.24 | 1 | 0 | ||
| 22 | VIT0003003 | WASHER 4,3X8X0,8 | 90.24 | 1 | 0 | ||
| 23 | VIT0003103 | SPRING WASHER 4,3 | 90.24 | 1 | 0 |
