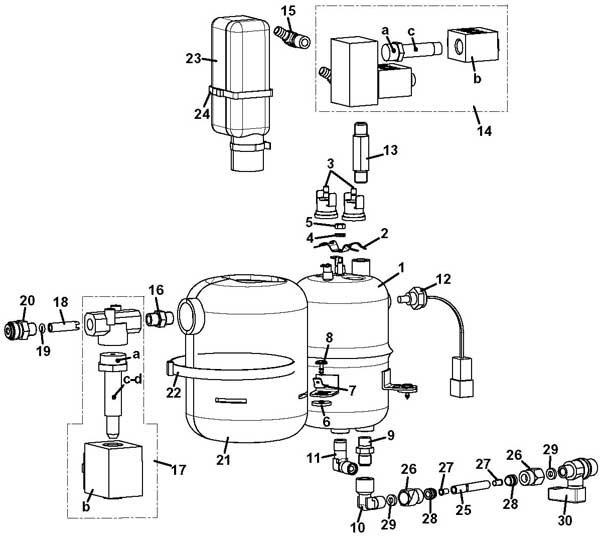

micro group boiler
EC E
Руководство
| № | Артикул | Название | Примечание | Цена, ₽ | Добавить в корзину | Мин. заказ | В корзине |
|---|---|---|---|---|---|---|---|
| 1 | Z0600019701CL | § BOILER 1500 W 230V 400 CC | 13 134.85 | 1 | 0 | ||
| 2 | Z0600019188 | THERMOSTAT CLIP | 466.56 | 1 | 0 | ||
| 3 | ELE0000982 | CLIXSON 127° | 1 624.37 | 1 | 0 | ||
| 4 | VIT0003109 | SPRING WASHER 4,3 | 90.24 | 1 | 0 | ||
| 5 | VIT0004816 | NUT M4 | 90.24 | 1 | 0 | ||
| 6 | 1600001098 | RUBBER SPACER D. 4,5 | 41.51 | 1 | 0 | ||
| 7 | Z0600019012 | GROUND WIRING | 90.24 | 1 | 0 | ||
| 8 | VIT0002401 | SCREW ST HEAD CAP M3.5X9.5 | 90.24 | 1 | 0 | ||
| 9 | Z0100001017 | STRAIGHT CONNECT SO1100-6-1/8 | 388.04 | 1 | 0 | ||
| 10 | Z0100001085 | ELBOW CONNECTOR | 514.38 | 1 | 0 | ||
| 11 | Z0100001019 | ELBOW CONNECTOR SO2400-6-1/8 | 1 004.40 | 1 | 0 | ||
| 12 | ELE0000975 | PROBE | 2 840.85 | 1 | 0 | ||
| 13 | Z0110001220 | STRAIGHT CONNECTOR MM 1/8 GC | 2 129.73 | 1 | 0 | ||
| 14 | Z0110001111 | VALVE BLOCK.2 2W 24V DC 7W | 12 173.77 | 1 | 0 | ||
| 14/a | Z0110010138 | SLEEVE | 1 868.03 | 1 | 0 | ||
| 14/a | Z0110010148 | SLEEVE | 2 869.72 | 1 | 0 | ||
| 14/b | Z0110010135 | COIL 7W 24V DC | 2 238.02 | 1 | 0 | ||
| 14/c | Z0110010136 | CORE+SPRING | 2 526.80 | 1 | 0 | ||
| 15 | Z0100001102 | CONNECTOR 1/8"-Ø7,2 90° | 1 949.25 | 1 | 0 | ||
| 16 | Z0100001084 | NIPPLE 1/8 | 406.09 | 1 | 0 | ||
| 17_1 | Z0110001112 | VALVE 3W 1/8 24V DC | 6 751.97 | 1 | 0 | ||
| 17_1/a | Z0110010142 | SLEEVE | 2 469.05 | 1 | 0 | ||
| 17_1/b | Z0110010141 | COIL 24V DC | 2 447.39 | 1 | 0 | ||
| 17_1/c | Z0110010144 | CORE+SPRING | 2 626.07 | 1 | 0 | ||
| 17_1/d | Z0110010146 | SPRING | 225.61 | 1 | 0 | ||
| 17_2 | Z0110001072 | VALVE 3W 1/8 24DC O | 5 728.62 | 1 | 0 | ||
| 17_2/b | Z0110010065 | COIL 8 W 24 DC | 2 698.26 | 1 | 0 | ||
| 18 | Z0110003122 | SPACER OR | 342.92 | 1 | 0 | ||
| 19 | GUA0000069 | OR 2015 VITON 80 BLACK | 90.24 | 1 | 0 | ||
| 20 | Z0110003121 | STRAIGHT CONNECTOR | 274.34 | 1 | 0 | ||
| 21 | Z0600019195 | INSULATION SHELL | 1 358.16 | 1 | 0 | ||
| 22 | FASC000214 | PLASTIC CLIP BLACK 7,8X365 | 90.24 | 1 | 0 | ||
| 23 | Z0600019197 | EV HOUSING INSULATION | 1 146.08 | 1 | 0 | ||
| 24 | FASC000215 | PLASTIC CLIP BLACK 2,6X200 | 90.24 | 1 | 0 | ||
| 25 | TTEF04/06T | PTFE PIPE 4X6 | 1 777.79 | 1 | 0 | ||
| 26 | Z0100001002 | CONNECTOR NUT | 234.63 | 1 | 0 | ||
| 27 | Z0100002005 | NUT D.4 | 90.24 | 1 | 0 | ||
| 28 | Z0100002002 | LOCKING RING SO1-6 | 99.27 | 1 | 0 | ||
| 29 | Z0100003002 | COPPER GASKET SO5-5-1/8 | 103.78 | 1 | 0 | ||
| 30 | Z0600019017 | TAP M/F 1/8 | 1 797.64 | 1 | 0 |
