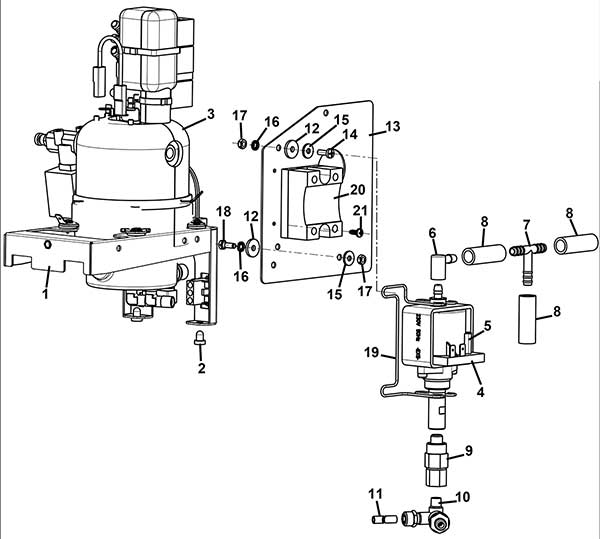

ESPRESSO BOILER
EC PRO
Руководство
Сервисная книжка
| № | Код | Название | Примечание | Цена, ₽ | Добавить | Мин. заказ | В корзине |
|---|---|---|---|---|---|---|---|
| 1/a | Z0600019701CL | § BOILER 1500 W 230V 400 CC | 14 081.12 | 1 | 0 | ||
| 1/b | Z0600019704CL | 1300W 100V STAINLESS STEEL | 14 081.12 | 1 | 0 | ||
| 2 | Z0600019188 | THERMOSTAT CLIP | 500.17 | 1 | 0 | ||
| 3 | ELE0000982 | CLIXSON 127° | 1 741.40 | 1 | 0 | ||
| 5 | VIT0004826 | NUT M4X0,7 | 96.74 | 1 | 0 | ||
| 6 | 1600001098 | RUBBER SPACER D. 4,5 | 44.50 | 1 | 0 | ||
| 7 | Z0600019012 | GROUND WIRING | 96.74 | 1 | 0 | ||
| 8 | VIT0002401 | SCREW ST HEAD CAP M3.5X9.5 | 96.74 | 1 | 0 | ||
| 10/a | Z0100001185 | ELBOW CONNECTOR 6-1/8 INOX316L | 4 974.59 | 1 | 0 | ||
| 10/b | Z0100001109 | ELBOW CONNECTOR 6-1/8+OR | 1 519.85 | 1 | 0 | ||
| 11/a | Z0100001185 | ELBOW CONNECTOR 6-1/8 INOX316L | 4 974.59 | 1 | 0 | ||
| 11/b | Z0100001109 | ELBOW CONNECTOR 6-1/8+OR | 1 519.85 | 1 | 0 | ||
| 12 | ELE0000975 | PROBE | 3 045.51 | 1 | 0 | ||
| 13 | Z0110001220 | STRAIGHT CONNECTOR MM 1/8 GC | 2 283.16 | 1 | 0 | ||
| 14 | Z0110001111 | VALVE BLOCK.2 2W 24V DC 7W | 13 050.79 | 1 | 0 | ||
| 14/a | Z0110010138 | SLEEVE | 2 002.60 | 1 | 0 | ||
| 14/a | Z0110010148 | SLEEVE | 3 076.47 | 1 | 0 | ||
| 14/b | Z0110010135 | COIL 7W 24V DC | 2 399.26 | 1 | 0 | ||
| 14/c | Z0110010136 | CORE+SPRING | 2 708.84 | 1 | 0 | ||
| 15 | Z0100001102 | CONNECTOR 1/8"-Ø7,2 90° | 2 089.67 | 1 | 0 | ||
| 16 | Z0100001084 | NIPPLE 1/8 | 435.35 | 1 | 0 | ||
| 17_1 | Z0110001112 | VALVE 3W 1/8 24V DC | 7 238.40 | 1 | 0 | ||
| 17_1/a | Z0110010142 | SLEEVE | 2 646.92 | 1 | 0 | ||
| 17_1/b | Z0110010141 | COIL 24V DC | 2 623.70 | 1 | 0 | ||
| 17_1/c | Z0110010144 | CORE+SPRING | 2 815.26 | 1 | 0 | ||
| 17_1/d | Z0110010146 | SPRING | 241.86 | 1 | 0 | ||
| 17_2 | Z0110001072 | VALVE 3W 1/8 24DC O | 6 141.32 | 1 | 0 | ||
| 17_2/b | Z0110010065 | COIL 8 W 24 DC | 2 892.65 | 1 | 0 | ||
| 18 | Z0100001070 | STRAIGHT CONNECTOR 800 4-1/8 | 377.30 | 1 | 0 | ||
| 19 | Z0600019195 | INSULATION SHELL | 1 456.00 | 1 | 0 | ||
| 20 | FASC000214 | PLASTIC CLIP BLACK 7,8X365 | 96.74 | 1 | 0 | ||
| 21 | Z0600019197 | EV HOUSING INSULATION | 1 228.65 | 1 | 0 | ||
| 22 | FASC000215 | PLASTIC CLIP BLACK 2,6X200 | 96.74 | 1 | 0 |
