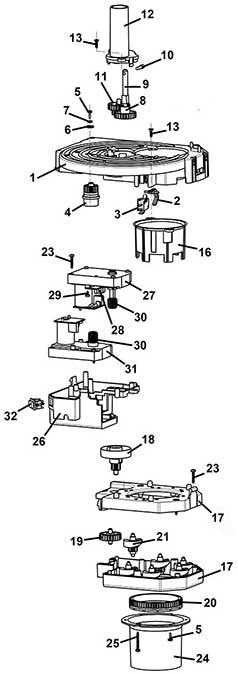

cups loader
rhea Business line doppio E
Руководство
Сервисная книжка
| № | Артикул | Название | Примечание | Цена, ₽ | Добавить в корзину | Мин. заказ | В корзине |
|---|---|---|---|---|---|---|---|
| 1 | Z0190006534CY-03 | TURRET SUPPORT RAL9018 | 1 749.81 | 1 | 0 | ||
| 2/a | Z0190006543-01 | MICROSWITCH LEVER WHITE | 55.05 | 1 | 0 | ||
| 2/b | Z0190006556KA | MICROSWITCH LEVER RAL3020 | 41.51 | 1 | 0 | ||
| 3 | ELE0001530 | MICROSWITCH 3A 125-250VA | 460.24 | 1 | 0 | ||
| 4 | Z0190006546 | CUP DISPENSER MOTOR CONNECTOR | 198.53 | 1 | 0 | ||
| 5 | VIT0002469 | SCREW HEAD TAP M3.5X10 | 90.24 | 1 | 0 | ||
| 6 | VIT0003301 | WASHER 4,3X12X1,5 | 90.24 | 1 | 0 | ||
| 7 | VIT0003103 | SPRING WASHER 4,3 | 90.24 | 1 | 0 | ||
| 8 | Z0190006503 | Z26 WHEEL TURRET (WHITE) | 157.93 | 1 | 0 | ||
| 9 | Z0190006564 | TURRET SHAFT | 733.67 | 1 | 0 | ||
| 10 | VIT0005203 | DOWEL PIN 4X18 | 90.24 | 1 | 0 | ||
| 11 | Z0190006544 | Z16 PINION WHITE | 192.22 | 1 | 0 | ||
| 12 | Z0190006537CY | TURRET CUP CONNEC. 4C. RAL9018 | 535.14 | 1 | 0 | ||
| 13 | VIT0002101 | SCREW COUNT FLAT HEAD M3.5X13 | 90.24 | 1 | 0 | ||
| 16/a | Z0190006538CF | CUPS REDUCER D.70 RAL7016 | 418.73 | 1 | 0 | ||
| 16/b | Z0190006539CY | CUPS REDUCER D.73 RAL9018 | 377.22 | 1 | 0 | ||
| 17 | Z0190006521CYR | LOWER/UPPER CUP DROP MECH. | 919.58 | 1 | 0 | ||
| 18 | Z0190006511NA | CUPS TURRET SPINDLE BLACK | 260.80 | 1 | 0 | ||
| 19 | Z0190006528 | Z26 WHEEL WHITE | 185.00 | 1 | 0 | ||
| 20/a | Z0190006523 | TOOTHED RING NUT D.70/73 | 384.43 | 1 | 0 | ||
| 20/b | Z0190006507 | TOOTHED RING NUT D.78/80 WHITE | 342.92 | 1 | 0 | ||
| 21/a | Z0190006506IC | SPLIT UP D.70/78-ORANGE PL | 150.71 | 1 | 0 | ||
| 21/b | Z0190006502 | CUP SPLITTER D.73/80 PP WHITE | 144.39 | 1 | 0 | ||
| 21/c | Z0190006551GJ | SPLIT UP D.70/78-YELLOW PP | 144.39 | 1 | 0 | ||
| 23 | VIT0002456 | SCREW HEAD TAP M3.5X25 | 90.24 | 1 | 0 | ||
| 24 | Z0190006514CY | CUPS CHUTE 70/73 RAL9018 | 480.09 | 1 | 0 | ||
| 25 | VIT0002468 | SCREW HEAD TAP M3.5X30 | 90.24 | 1 | 0 | ||
| 26 | Z0190006522CY | MOTOR SUPPORT RAL9018 | 905.14 | 1 | 0 | ||
| 27 | Z0090002114R2 | § GEARBOX MOTOR 11RPM 24V DC | 2 227.19 | 1 | 0 | ||
| 28 | SCH0007000 | SPLIT UP SENSOR | 752.63 | 1 | 0 | ||
| 29 | VIT0002002 | SCREW ST HEAD CAP M3.5X6.5 | 90.24 | 1 | 0 | ||
| 30 | Z0190006518 | TOOTHED SHAFT Z18 WHITE | 102.88 | 1 | 0 | ||
| 31 | Z0090002123R | § GEARBOX MOTOR 5,5RPM 24V DC | 2 647.73 | 1 | 0 | ||
| 32 | ELE0002258CL | § PUSH BUTTON RED | 1 571.13 | 1 | 0 | ||
| 100/a | Z0190006534CL3R | § TURRET SUPP-4COLUMNS D.70/73 | 4 831.60 | 1 | 0 | ||
| 100/b | Z0190006534CL4R | § TURRET SUPPORT-4COLUMNS D.80 | 4 015.81 | 1 | 0 | ||
| 101/a | Z0190006520CLR | § CUP DROP MECH. D.70-PL | 3 167.53 | 1 | 0 | ||
| 101/b | Z0190006520CL0R | § CUP DROP MECH. D.70-PP | 3 126.92 | 1 | 0 | ||
| 101/c | Z0190006520CL2R | § CUP DROP MECH. D.73-PP | 3 126.92 | 1 | 0 | ||
| 101/d | Z0190006521CL5R | § CUP DROP MECH. D.80-PP | 3 085.40 | 1 | 0 | ||
| 102 | Z0190006522CLR | § CUPS DISPENSER MOTOR SUPPORT | 11 600.72 | 1 | 0 |
