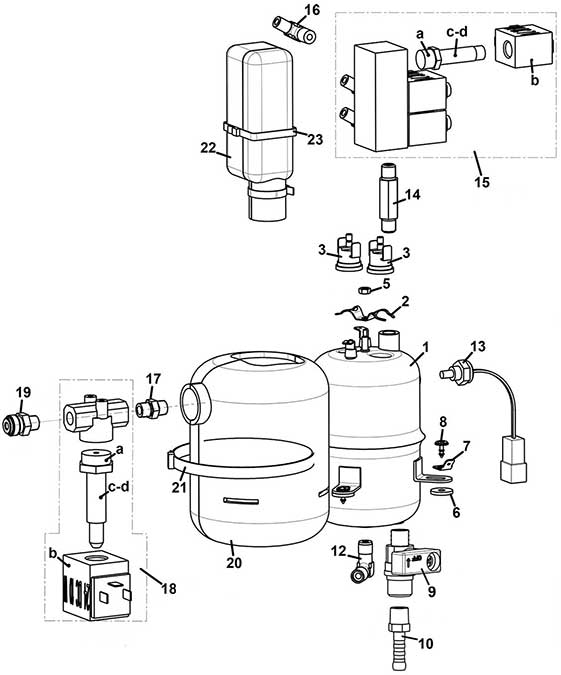

ESPRESSO BOILER
rhea Business line doppio E
Руководство
Сервисная книжка
| № | Артикул | Название | Примечание | Цена, ₽ | Добавить в корзину | Мин. заказ | В корзине |
|---|---|---|---|---|---|---|---|
| 1/a | Z0600019701CL | § BOILER 1500 W 230V 400 CC | 13 134.85 | 1 | 0 | ||
| 1/b | Z0600019703CL | § PRESS.BOIL.800CC 2000W 230V | 23 640.03 | 1 | 0 | ||
| 2 | Z0600019188 | THERMOSTAT CLIP | 466.56 | 1 | 0 | ||
| 3 | ELE0000982 | CLIXSON 127° | 1 624.37 | 1 | 0 | ||
| 5 | VIT0004826 | NUT M4X0,7 | 90.24 | 1 | 0 | ||
| 6 | 1600001098 | RUBBER SPACER D. 4,5 | 41.51 | 1 | 0 | ||
| 7 | Z0600019012 | GROUND WIRING | 90.24 | 1 | 0 | ||
| 8 | VIT0002401 | SCREW ST HEAD CAP M3.5X9.5 | 90.24 | 1 | 0 | ||
| 9 | Z0600019017 | TAP M/F 1/8 | 1 797.64 | 1 | 0 | ||
| 10 | Z0100001082 | RUBBER HOLDER D.7-GC 1/8 | 631.70 | 1 | 0 | ||
| 12 | Z0100001109 | ELBOW CONNECTOR 6-1/8+OR | 1 417.72 | 1 | 0 | ||
| 13 | ELE0000975 | PROBE | 2 840.85 | 1 | 0 | ||
| 14 | Z0110001220 | STRAIGHT CONNECTOR MM 1/8 GC | 2 129.73 | 1 | 0 | ||
| 15/1 | Z0110001117 | VALVE BLOCK 3V 2W 24V DC 7W | 13 225.10 | 1 | 0 | ||
| 15/1-2-a | Z0110010138 | SLEEVE | 1 868.03 | 1 | 0 | ||
| 15/1-2-a | Z0110010148 | SLEEVE | 2 869.72 | 1 | 0 | ||
| 15/1-2-b | Z0110010135 | COIL 7W 24V DC | 2 238.02 | 1 | 0 | ||
| 15/1-2-c-d | Z0110010136 | CORE+SPRING | 2 526.80 | 1 | 0 | ||
| 15/2 | Z0110001129 | VALVE BLOCK 4-2W 24V DC 7W | 15 738.36 | 1 | 0 | ||
| 16 | Z0100001102 | CONNECTOR 1/8"-Ø7,2 90° | 1 949.25 | 1 | 0 | ||
| 17 | Z0100001084 | NIPPLE 1/8 | 406.09 | 1 | 0 | ||
| 18 | Z0110001112 | VALVE 3W 1/8 24V DC | 6 751.97 | 1 | 0 | ||
| 18/a | Z0110010142 | SLEEVE | 2 469.05 | 1 | 0 | ||
| 18/b | Z0110010141 | COIL 24V DC | 2 447.39 | 1 | 0 | ||
| 18/c | Z0110010144 | CORE+SPRING | 2 626.07 | 1 | 0 | ||
| 18/d | Z0110010146 | SPRING | 225.61 | 1 | 0 | ||
| 19/a | Z0100001070 | STRAIGHT CONNECTOR 800 4-1/8 | 351.95 | 1 | 0 | ||
| 19/b | Z0100001111 | CONNECTOR 4-1/8+OR | 6 697.83 | 1 | 0 | ||
| 20/a | Z0600019195 | INSULATION SHELL | 1 358.16 | 1 | 0 | ||
| 20/b | Z0600019198 | 800CC BOILER HOUSING INSULAT. | 2 504.24 | 1 | 0 | ||
| 21 | FASC000214 | PLASTIC CLIP BLACK 7,8X365 | 90.24 | 1 | 0 | ||
| 22/a | Z0600019196 | EV HOUSING INSULATION | 1 146.08 | 1 | 0 | ||
| 22/b | Z0600019175 | EV HOUSING INSULATION | 2 922.07 | 1 | 0 | ||
| 23 | FASC000215 | PLASTIC CLIP BLACK 2,6X200 | 90.24 | 1 | 0 |
