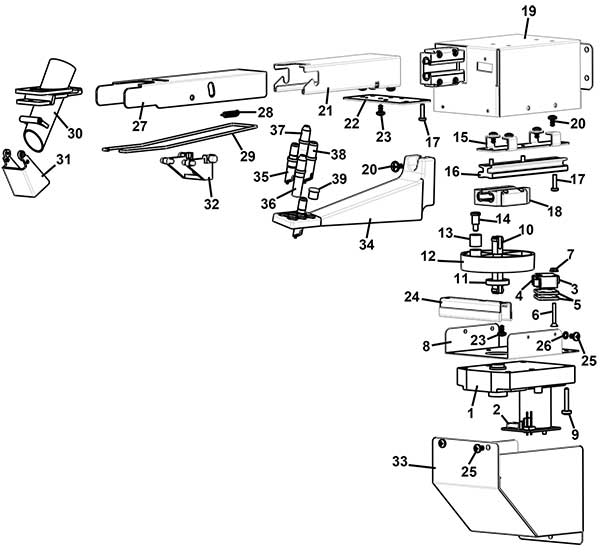

extractable sugar movement
rhea Business line doppio E
Руководство
Сервисная книжка
| № | Артикул | Название | Примечание | Цена, ₽ | Добавить в корзину | Мин. заказ | В корзине |
|---|---|---|---|---|---|---|---|
| 1 | Z0090002114R1 | § GEARBOX MOTOR 11RPM 24V DC | 3 375.08 | 1 | 0 | ||
| 2 | SCH0003740 | MOTOR FILTER | 816.70 | 1 | 0 | ||
| 3 | ELE0001522 | MICROSWITCH | 469.26 | 1 | 0 | ||
| 4 | ELE0001906 | MICROSWITCH LEVER | 74.00 | 1 | 0 | ||
| 5 | 4600010014 | SPACER | 39.71 | 1 | 0 | ||
| 6 | VIT0000105 | M 3*20 TSP SCREW | 90.24 | 1 | 0 | ||
| 7 | VIT0004701 | NUT M3 | 90.24 | 1 | 0 | ||
| 8 | Z0380011761NA | GEARBOX MOTOR SUPPORT (BLACK) | 1 749.81 | 1 | 0 | ||
| 9 | VIT0000035 | SCREW HEAD TAP CAP M4X20 | 90.24 | 1 | 0 | ||
| 10 | Z0380010421 | GEARBOX MOTOR SHAFT | 48.73 | 1 | 0 | ||
| 11 | Z0380010831 | BUSH 20x4 | 260.80 | 1 | 0 | ||
| 12 | Z0380011411 | DISK | 144.39 | 1 | 0 | ||
| 13 | Z0200001011 | BEARING | 148.00 | 1 | 0 | ||
| 14 | Z0200001012 | PIN BEARING | 102.88 | 1 | 0 | ||
| 15 | Z0380011752 | GUIDE SUPPORT | 1 523.30 | 1 | 0 | ||
| 16 | Z0380010933 | PIPES MOVEMENT GUIDE RAIL | 2 414.90 | 1 | 0 | ||
| 17 | VIT0000005 | SCREW HEAD TAP CAP M3X12 | 90.24 | 1 | 0 | ||
| 18 | Z0380010798 | NOZZLE MOVEMENT GUIDE | 5 104.14 | 1 | 0 | ||
| 19 | Z0380011751NA | PIPE MOVEMENT HOUSING (BLACK) | 3 066.45 | 1 | 0 | ||
| 20 | VIT0002401NA | SCREW ST HEAD CAP M3.5X9.5 | 0.00 | 1 | 0 | ||
| 21 | Z0380011753 | PIPE MOVEMENT GUIDE | 1 303.11 | 1 | 0 | ||
| 22 | Z0380011754 | SLIDE SUPPORT | 342.92 | 1 | 0 | ||
| 23 | VIT0002009 | SCREW ST HEAD CAP M3.5X6.5 | 90.24 | 1 | 0 | ||
| 24 | Z0380011755 | SLIDE | 1 289.57 | 1 | 0 | ||
| 25 | VIT0002009NA | SCREW STHEAD CAP 3,5X6,5 BLACK | 90.24 | 1 | 0 | ||
| 26 | VIT0003115 | SPRING WASHER 3,7 | 90.24 | 1 | 0 | ||
| 27 | Z0380011327 | SUPPORT | 1 159.62 | 1 | 0 | ||
| 28 | Z0380010431 | SPRING | 226.51 | 1 | 0 | ||
| 29 | Z0380011328 | BRACKET | 324.87 | 1 | 0 | ||
| 30 | Z0380011229NA | SUGAR CHUTE | 292.39 | 1 | 0 | ||
| 31 | Z0380010424NA | SUGAR SPLITTER | 111.90 | 1 | 0 | ||
| 32 | Z0380010599 | NOZZLE MOVEMENT BUTTON | 137.17 | 1 | 0 | ||
| 33 | Z0380011756NA | GEARBOX MOTOR COVER (BLACK) | 2 634.19 | 1 | 0 | ||
| 34 | Z0380011551NA | NOZZLES HOLDER | 919.58 | 1 | 0 | ||
| 35 | Z0380011665EB | COFFEE NOZZLE RAL8019 | 61.37 | 1 | 0 | ||
| 36 | Z0380011666CK | MILK NOZZLE (RAL7037) | 41.51 | 1 | 0 | ||
| 37 | Z0380011667MD | THE NOZZLE RAL6032 | 41.51 | 1 | 0 | ||
| 38 | Z0380010657NA | ESPRESSO NOZZLE D. 5,7 | 27.07 | 1 | 0 | ||
| 39 | Z0380010656NA | PLUG BLACK | 18.05 | 1 | 0 | ||
| 100 | Z0380011750CL | § PIPES MOVIMENT | 21 385.76 | 1 | 0 |
