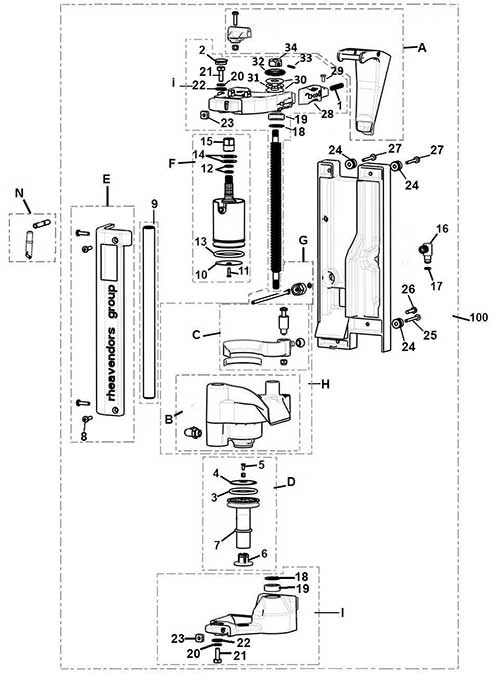

PROFESSIONAL BREWER GROUP D.36
rhea Business line doppio E
Руководство
Сервисная книжка
| № | Артикул | Название | Примечание | Цена, ₽ | Добавить в корзину | Мин. заказ | В корзине |
|---|---|---|---|---|---|---|---|
| A | Z0250014033R | § CHUTE D. 36 | 471.97 | 1 | 0 | ||
| B | Z0250014032R | § INFUSION CHAMBER D.36 | 9 041.44 | 1 | 0 | ||
| C | Z0250014034R | § BRUSH D.36 | 2 500.63 | 1 | 0 | ||
| D | Z0250014038R | § LOWER FILTER HOLDER D.36 | 3 052.92 | 1 | 0 | ||
| E | Z0250014019R | § FRONTAL COVER | 906.04 | 1 | 0 | ||
| F | Z0250014040R | § UPPER FILTER HOLDER D.36 | 3 855.18 | 1 | 0 | ||
| G | Z0250014086CL1 | §WATER INLET TUBE 0,119 mt | 799.55 | 1 | 0 | ||
| H | Z0250014030R | § CHAMBER D.36 | 9 535.97 | 1 | 0 | ||
| I | Z0250014005R2 | §UPPER SUPPORT WITHOUT CHUTE | 11 232.53 | 1 | 0 | ||
| L | Z0250014012R | § LOWER SUPPORT | 5 351.40 | 1 | 0 | ||
| N | Z0250008132CL | § COFFEE OUTLET PIPE | 297.80 | 1 | 0 | ||
| 1 | Z0250014081 | SPRING | 212.97 | 1 | 0 | ||
| 2 | GUA0011022 | PLUG | 90.24 | 1 | 0 | ||
| 3 | GUA0000080 | OR 4112 RED SILICONE LSR70 | 90.24 | 1 | 0 | ||
| 4 | Z0250008019 | COFFEE FILTER | 651.55 | 1 | 0 | ||
| 5 | VIT0000121 | SCREW COUNT FLAT HEAD M3X8 | 90.24 | 1 | 0 | ||
| 6 | Z0250014027R1 | LOWER PISTON LOCK+SET SCREW | 317.66 | 1 | 0 | ||
| 7 | GUA0000103 | OR 3075 SILICON | 90.24 | 1 | 0 | ||
| 8 | VIT0001009 | SCREW HEAD TAP CAP M4X16 | 90.24 | 1 | 0 | ||
| 10 | Z0250008099 | COFFEE FILTER 33,4 | 960.18 | 1 | 0 | ||
| 11 | VIT0000129 | SCREW COUNT HEAD M3X12 | 90.24 | 1 | 0 | ||
| 12 | GUA0000045 | OR 108 VITON 80 BLACK | 90.24 | 1 | 0 | ||
| 13 | GUA0000080 | OR 4112 RED SILICONE LSR70 | 90.24 | 1 | 0 | ||
| 14 | Z0250014048 | SPRING | 48.73 | 1 | 0 | ||
| 15 | Z0250014086 | NUT | 123.63 | 1 | 0 | ||
| 16 | Z0250014085 | MALE CONNECTOR | 185.00 | 1 | 0 | ||
| 17 | GUA0000004 | OR 104 NBR AL 75 BLACK | 90.24 | 1 | 0 | ||
| 18 | Z0250014077 | SPACER | 346.53 | 1 | 0 | ||
| 19 | VIT0009320 | BEARING | 1 443.89 | 1 | 0 | ||
| 20 | VIT0003113 | SPRING WASHER 6,4 | 90.24 | 1 | 0 | ||
| 21 | VIT0000249 | SCREW HEX HEAD M6X16 | 90.24 | 1 | 0 | ||
| 22 | Z0250014079 | WASHER D.15 D.6,5 SP.1,5 | 590.19 | 1 | 0 | ||
| 23 | VIT0009112 | NUT M4 | 90.24 | 1 | 0 | ||
| 24 | Z0250014072 | PIN | 274.34 | 1 | 0 | ||
| 25 | VIT0000033 | SCREW HEAD TAP CAP M4X35 | 90.24 | 1 | 0 | ||
| 26 | VIT0001011 | SCREW HEAD TAP CAP M4X20 | 90.24 | 1 | 0 | ||
| 27 | VIT0001006 | SCREW HEAD TAP CAP M4X30 | 90.24 | 1 | 0 | ||
| 28 | Z0250014082 | BREWER STOPPER BUTTON | 295.09 | 1 | 0 | ||
| 29 | VIT0002009 | SCREW ST HEAD CAP M3.5X6.5 | 90.24 | 1 | 0 | ||
| 30 | VIT0009318 | SPACER WASHER | 252.68 | 1 | 0 | ||
| 31 | VIT0009317 | BEARING | 1 238.13 | 1 | 0 | ||
| 32 | GUA0001007 | V RING GASKET VA16 | 207.56 | 1 | 0 | ||
| 33 | VIT0007011 | SET SCREW 4X4 | 90.24 | 1 | 0 | ||
| 34 | Z0250014071 | NUT M8 | 1 078.40 | 1 | 0 | ||
| 100 | Z0250014060CL | § COFFEE BREWER VARIFLEX D.36 | 29 092.51 | 1 | 0 |
