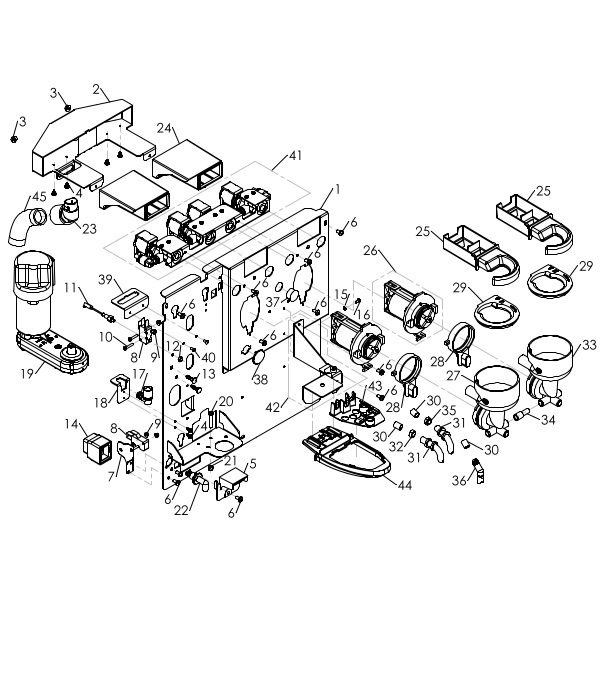

MIXER PLAN
rhTT1. VHO V+
Руководство
| № | Код | Название | Примечание | Цена, ₽ | Добавить | Мин. заказ | В корзине |
|---|---|---|---|---|---|---|---|
| 1 | Z026B185010 | ESPRESSO MIXER PLATE | 11 276.50 | 1 | 0 | ||
| 2 | Z026B185025 | TRAP DRAWER | 7 192.93 | 1 | 0 | ||
| 3 | DAM0000056 | NUT M4 | 96.74 | 1 | 0 | ||
| 4 | VIT0002009 | SCREW ST HEAD CAP M3.5X6.5 | 96.74 | 1 | 0 | ||
| 5 | Z0010020836CL | §DRIP TRAY SENSOR | 605.62 | 1 | 0 | ||
| 6 | VIT0000011 | SCREW HEAD TAP CAP M4X8 | 96.74 | 1 | 0 | ||
| 7 | Z026B185015 | MICROSWITCH SUPPORT | 1 000.34 | 1 | 0 | ||
| 8 | ELE0001522 | MICROSWITCH | 503.07 | 1 | 0 | ||
| 9 | VIT0004701 | NUT M3 | 96.74 | 1 | 0 | ||
| 10 | VIT0000006 | SCREW HEAD TAP CAP M3X16 | 96.74 | 1 | 0 | ||
| 11 | ELE0000932 | PROBE | 2 248.34 | 1 | 0 | ||
| 12 | VIT0004816 | NUT M4 | 96.74 | 1 | 0 | ||
| 13 | ELE0062020 | BOARD SUPPORT | 96.74 | 1 | 0 | ||
| 14 | ELE0000467-02 | FAN HEATER 24V DC + BOARD | 8 666.35 | 1 | 0 | ||
| 15 | VIT0003102 | SPRING WASHER 3,2 | 96.74 | 1 | 0 | ||
| 16 | VIT0000002 | SCREW HEAD TAP CAP M3X6 | 96.74 | 1 | 0 | ||
| 17 | Z0250014084-02 | FEMALE CONNECTOR | 183.81 | 1 | 0 | ||
| 18 | Z0260014009-01 | H2O CONNECTOR SUPPORT | 397.62 | 1 | 0 | ||
| 19 | Z0090002250R | § VARIFLEX BREW. GEARBOX MOTOR | 14 401.34 | 1 | 0 | ||
| 20 | VIT0000015 | SCREW HEAD TAP CAP M4X25 | 96.74 | 1 | 0 | ||
| 21 | VIT0004815 | NUT M4 | 96.74 | 1 | 0 | ||
| 22 | Z0080100084 | 90° CONNECTOR | 44.50 | 1 | 0 | ||
| 23 | Z0010025153NA | EXTRACTOR TUBE 20MM CONNECTOR | 139.31 | 1 | 0 | ||
| 24 | Z0010027214 | TRAP DRAWER | 169.30 | 1 | 0 | ||
| 25 | Z008B185011PG | REMOVABLE TRAP DRAWER R5012 | 536.93 | 1 | 0 | ||
| 26 | MIXER | ||||||
| 27 | Z0080200103CPG | MIXING BOWL F.W/H20 BREAKER | 625.93 | 1 | 0 | ||
| 28 | Z0080100006IC | LOCK RING RAL2011 | 116.09 | 1 | 0 | ||
| 29 | Z008B185010PG | UPPER RING RAL5012 | 220.58 | 1 | 0 | ||
| 30/a | TSIL06/09PG-10 | SILICON HOSE D6X9 R5012 MT.10 | 6 922.05 | 1 | 0 | ||
| 30/b | TSIL06/09PG-50 | SILICON HOSE D6X9 R5012 MT.50 | 18 509.10 | 1 | 0 | ||
| 31 | Z0010020052 | PRODUCT NOZZLE | 59.01 | 1 | 0 | ||
| 32 | Z0080100129 | HOSE RING GREEN D.9 | 261.21 | 1 | 0 | ||
| 33 | Z0080200101LPG | BLUE MIXING BOWL L.W/H20 BREAK | 625.93 | 1 | 0 | ||
| 34 | Z0080100095PG | REDUCTION | 135.44 | 1 | 0 | ||
| 35 | Z0080100130 | HOSE RING BLUE D.9 | 319.26 | 1 | 0 | ||
| 36 | Z0020039533 | SPOUT DELIVERY 30° D.6 | 51.27 | 1 | 0 | ||
| 37 | GUA0011010 | PLUG | 116.09 | 1 | 0 | ||
| 38 | Z0080100035NA | CONNECTOR PLUG BLACK | 34.83 | 1 | 0 | ||
| 39 | Z001B185003 | 16-POLE CONNECTOR BRACKET | 215.74 | 1 | 0 | ||
| 40 | VIT0007021 | BLIND RIVET 3X6 | 96.74 | 1 | 0 | ||
| 41 | SOLUBLES VALVES | ||||||
| 42 | PIPES SUPPORT | ||||||
| 43/a | Z007B185003NA | SUP. TUBE HOLDER - DOUBLE CAP. | 618.20 | 1 | 0 | ||
| 43/b | Z007B185004NA | PIPE SUPP. NO FRESH MILK NOZZ. | 912.30 | 1 | 0 | ||
| 44 | Z007B185006NA | UNIVERSAL PIPE SUPPORT | 639.48 | 1 | 0 | ||
| 45 | TEOL000001CL | EXTRACTOR TUBE D.20 270MM | 338.60 | 1 | 0 |
