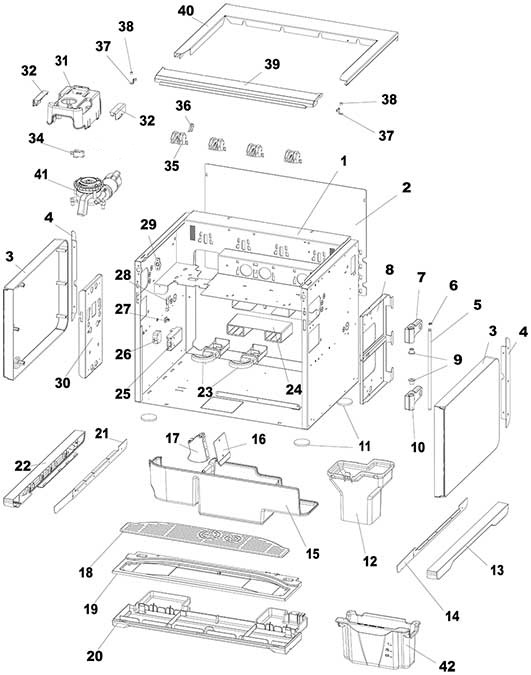

CABINET
rhTT3.pro
Руководство
Сервисная книжка
| № | Код | Название | Примечание | Цена, ₽ | Добавить | Мин. заказ | В корзине |
|---|---|---|---|---|---|---|---|
| 1 | Z001A115045NA | CABINET STRUCTURE | 0.00 | 1 | 0 | ||
| 2 | Z001A115022 | REAR CABINET | 5 441.86 | 1 | 0 | ||
| 3 | Z001A115090CM | SIDE COVER | 0.00 | 1 | 0 | ||
| 4 | Z001A115095NA | SIDE COVER SUPPORT | 0.00 | 1 | 0 | ||
| 5 | Z002A115116 | HINGE PIN Ø8 h7 | 0.00 | 1 | 0 | ||
| 6 | VIT0006650 | RING D8 | 0.00 | 1 | 0 | ||
| 7 | Z002A115132NA | UPPER HINGE WITH BUSHING | 0.00 | 1 | 0 | ||
| 8 | Z002A115105 | DOOR HINGE SUPPORT | 0.00 | 1 | 0 | ||
| 9 | Z002A115106 | SPACER | 308.61 | 1 | 0 | ||
| 10 | Z002A115130NA | LOWER HINGE | 0.00 | 1 | 0 | ||
| 11 | Z0010024112 | NON-SLIP SURFACE D.43,5X4 | 134.47 | 1 | 0 | ||
| 12 | Z026A115052 | GROUNDS CHUTE | 2 794.94 | 1 | 0 | ||
| 13 | Z001A115087CM | SIDE COVER DOWN | 1 780.09 | 1 | 0 | ||
| 14 | Z001A115088NA | SIDE COVER SUPPORT DOWN RIGHT | 2 133.21 | 1 | 0 | ||
| 15 | Z001A115031 | GROUNDS CONTAINER | 2 419.57 | 1 | 0 | ||
| 16 | Z001A115069 | GROUND EXPULSION VANE | 957.77 | 1 | 0 | ||
| 17 | Z0010024164-02 | GROUNDS EJECTOR | 280.56 | 1 | 0 | ||
| 18 | Z002A115029-03 | INOX GRID | 2 993.27 | 1 | 0 | ||
| 19 | Z002A115026NA | GRID | 2 184.48 | 1 | 0 | ||
| 20 | Z002A115022CL | DRIP TRAY | 4 228.69 | 1 | 0 | ||
| 21 | Z001A115086NA | SIDE COVER SUPPORT DOWN LEFT | 1 823.63 | 1 | 0 | ||
| 22 | Z001A115085CM | LOWER L.H. LATERAL COVER | 2 139.98 | 1 | 0 | ||
| 23 | Z0010027022 | TRAP DRAWER REMOVABLE | 138.34 | 1 | 0 | ||
| 24 | Z0010027037 | TRAP DRAWER | 377.30 | 1 | 0 | ||
| 25 | Z001A115034R | §SWITCH SUPPORT W/ADHESIVE | 1 029.36 | 1 | 0 | ||
| 26 | ELE0002019 | SWITCH 16A 250V | 1 625.30 | 1 | 0 | ||
| 27 | ELE0062253 | WIRING CLAMP ADESIVE | 100.61 | 1 | 0 | ||
| 28 | Z0270011109IC | SERVICE KEY RAL2011 | 88.04 | 1 | 0 | ||
| 29 | Z002A115114NA | DOOR PIN | 0.00 | 1 | 0 | ||
| 30 | Z002A115109 | INTERNAL COVER CABINET | 0.00 | 1 | 0 | ||
| 31 | Z0230015738-03 | GRINDER COVER | 514.68 | 1 | 0 | ||
| 32 | Z0230015229-02 | REGULATION COVER | 147.05 | 1 | 0 | ||
| 34 | ELE0001522CL | § MICROSWITCH + LEVER + FASTON | 595.94 | 1 | 0 | ||
| 35 | Z023A115027NA | MICRO SUPPORT (BLACK) | 206.07 | 1 | 0 | ||
| 36 | ELE0001537CL | § SENSOR MICRO | 1 596.28 | 1 | 0 | ||
| 37 | Z001A115066-01 | UPPER CROSSBAR STOPPING LEVER | 477.92 | 1 | 0 | ||
| 38 | H00040094 | NYLON SPACER 3,7X6,4 H.11 | 0.00 | 1 | 0 | ||
| 39 | Z001A115062NA | UPPER COVER CROSSBAR | 3 985.86 | 1 | 0 | ||
| 40 | Z001A115035NA | UPPER COVER | 8 383.85 | 1 | 0 | ||
| 41 | GRINDER | ||||||
| 42 | Z002A115040NA | RINSING CICLE CONTAINER | 2 919.74 | 1 | 0 | ||
| 100 | Z001A115031CL | §GROUNDS HOPPER | 4 162.90 | 1 | 0 |
