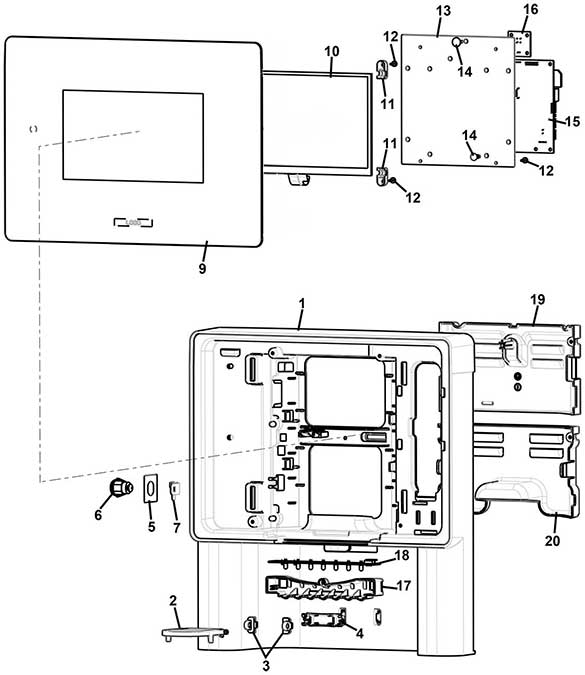

DOOR
Roma Due.touch
Руководство
Сервисная книжка
| № | Код | Название | Примечание | Цена, ₽ | Добавить | Мин. заказ | В корзине |
|---|---|---|---|---|---|---|---|
| 1 | Z0020039456DMV | DOOR (PAINTED ANTHRACITE) | 11 779.57 | 1 | 0 | ||
| 2 | Z0020039072TR-02 | CUP SUPPORT (TRANSPARENT) | 426.64 | 1 | 0 | ||
| 3 | Z0020039073NA | CUP SUPPORT PIN BLACK | 154.79 | 1 | 0 | ||
| 4 | Z0020039087-03IC | CUP HOLDER BRACKET | 37.73 | 1 | 0 | ||
| 5 | Z0020037014 | LOCK PLATE | 139.31 | 1 | 0 | ||
| 6 | SER0000020 | LOCK MM20 C.3425 | 1 139.65 | 1 | 0 | ||
| 7 | Z0020037015 | LOCK PLATE | 265.08 | 1 | 0 | ||
| 9 | Z0020039491R | §FRONT PAN. W/O C.MECH.10"+SUP | 41 369.75 | 1 | 0 | ||
| 10 | ELT0030775-01 | LCD TFT 10,1" | 20 185.68 | 1 | 0 | ||
| 11 | Z0020043037NA | BOARD FIXING BRACKET | 95.78 | 1 | 0 | ||
| 12 | VIT0002469 | SCREW HEAD TAP M3.5X10 | 96.74 | 1 | 0 | ||
| 13 | Z0020039489 | BOARD SUPPORT 10" | 779.76 | 1 | 0 | ||
| 14 | ELE0062023 | BOARD SUPPORT | 106.42 | 1 | 0 | ||
| 15 | SCH0009990-04 | DISPLAY BOARD GPU TOUCHSCR 7" | 63 270.71 | 1 | 0 | ||
| 16 | SCH0010080 | SERVICE BUTTON BOARD | 1 656.26 | 1 | 0 | ||
| 17 | Z0020039029TR | CUP STAT.ENLIGHTENMENT SUPPORT | 573.69 | 1 | 0 | ||
| 18 | SCH0007760 | CUP STATION LED BOARD | 2 410.87 | 1 | 0 | ||
| 19 | Z0020039134IC | UPPER DOOR RAL2011 | 860.06 | 1 | 0 | ||
| 20 | Z0020039464CM | BOARD COVER RAL9006 | 963.57 | 1 | 0 |
