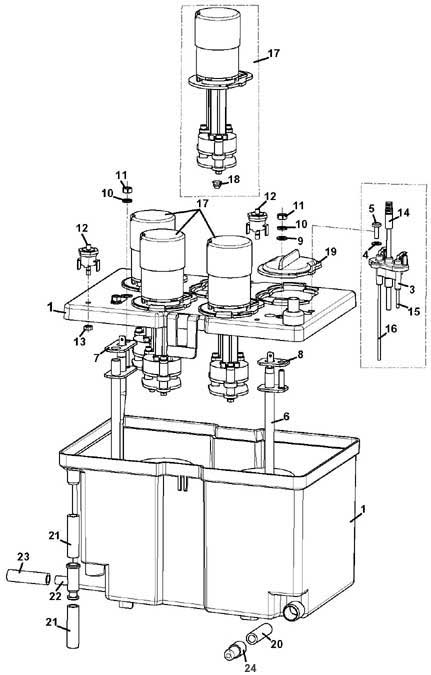

boiler
LUCE X2 premium
Руководство
| № | Код | Название | Примечание | Цена, ₽ | Добавить | Мин. заказ | В корзине |
|---|---|---|---|---|---|---|---|
| 1 | Z0600014111R | § TANK+BOILER COVER | 8 123.61 | 1 | 0 | ||
| 3 | Z0600016089 | PROBE SUPPORT | 161.56 | 1 | 0 | ||
| 4 | VIT0003211 | WASHER 4,3X9X0,8 | 96.74 | 1 | 0 | ||
| 5 | VIT0001005 | SCREW HEAD TAP CAP M4X12 | 96.74 | 1 | 0 | ||
| 6 | Z0600016138R | § HEATING ELEMENT 1600W 230V | 4 688.22 | 1 | 0 | ||
| 7 | Z0600014113-02 | HEATING ELEM GASKET | 382.14 | 1 | 0 | ||
| 8 | Z0600014114-01 | BOILER STRENGHT GASKET 5P | 323.13 | 1 | 0 | ||
| 9 | VIT0003203 | WASHER 5,3X10X1 | 96.74 | 1 | 0 | ||
| 10 | VIT0003111 | SPRING WASHER 5,3 | 96.74 | 1 | 0 | ||
| 11 | VIT0004804 | NUT M5 | 96.74 | 1 | 0 | ||
| 12 | ELE0000965 | CLIXSON 88° | 1 152.22 | 1 | 0 | ||
| 13 | VIT0004816 | NUT M4 | 96.74 | 1 | 0 | ||
| 14 | ELE0000978R | SOLUBLES PROBE 80MM | 2 574.36 | 1 | 0 | ||
| 15 | Z0600016054 | MAXIMUM LEVEL PROBE | 183.81 | 1 | 0 | ||
| 16 | Z0600016053 | MINIMUM LEVEL PROBE | 212.84 | 1 | 0 | ||
| 17 | Z0600016405R | § BOILER PUMP | 5 440.89 | 1 | 0 | ||
| 18 | Z0080100102 | MIXER SHAFT GASKET | 73.53 | 1 | 0 | ||
| 19 | Z0600016422 | PUMP LID | 169.30 | 1 | 0 | ||
| 20/a | TSIL10/14T-10 | SILICON HOSE 10X14 MT.10 | 10 186.20 | 1 | 0 | ||
| 20/b | TSIL10/14T-50 | SILICON HOSE 10X14 MT.50 | 36 772.47 | 1 | 0 | ||
| 21/a | TSIL07/11T-10 | SILICON HOSE 7X11 MT.10 | 9 566.07 | 1 | 0 | ||
| 21/b | TSIL07/11T-50 | SILICON HOSE 7X11 MT.50 | 27 334.11 | 1 | 0 | ||
| 22 | Z0600016028 | T CONNECTOR | 44.50 | 1 | 0 | ||
| 23/a | TSIL05/08T-10 | SILICON HOSE 5X8 MT.10 | 4 780.13 | 1 | 0 | ||
| 23/b | TSIL05/08T-50 | SILICON HOSE 5X8 MT.50 | 15 811.87 | 1 | 0 | ||
| 24 | 650001057 | DRAINER PLUG | 42.57 | 1 | 0 | ||
| 100 | Z0600014100R2 | § BOILER 4PUMP | 31 032.64 | 1 | 0 | ||
| 101 | Z0600014101R2 | § BOILER 3PUMP 1600W 230V | 28 083.87 | 1 | 0 | ||
| 102 | Z0600014102R2 | § BOILER 5PUMP 1600W 230V | 34 646.03 | 1 | 0 |
