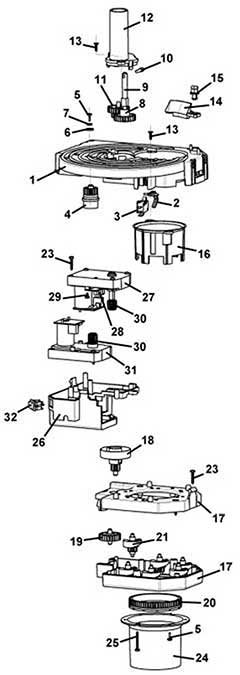

cups loader
LUCE X2 premium
Руководство
| № | Код | Название | Примечание | Цена, ₽ | Добавить | Мин. заказ | В корзине |
|---|---|---|---|---|---|---|---|
| 1 | Z0190006534CY-03 | TURRET SUPPORT RAL9018 | 1 875.87 | 1 | 0 | ||
| 2/a | Z0190006543-01 | MICROSWITCH LEVER WHITE | 59.01 | 1 | 0 | ||
| 2/b | Z0190006556KA | MICROSWITCH LEVER RAL3020 | 44.50 | 1 | 0 | ||
| 3 | ELE0001530 | MICROSWITCH 3A 125-250VA | 493.40 | 1 | 0 | ||
| 4 | Z0190006546 | CUP DISPENSER MOTOR CONNECTOR | 212.84 | 1 | 0 | ||
| 5 | VIT0002469 | SCREW HEAD TAP M3.5X10 | 96.74 | 1 | 0 | ||
| 6 | VIT0003301 | WASHER 4,3X12X1,5 | 96.74 | 1 | 0 | ||
| 7 | VIT0003103 | SPRING WASHER 4,3 | 96.74 | 1 | 0 | ||
| 8 | Z0190006503 | Z26 WHEEL TURRET (WHITE) | 169.30 | 1 | 0 | ||
| 9 | Z0190006536 | TURRET SHAFT | 698.49 | 1 | 0 | ||
| 10 | Z0190006553 | PIN | 124.80 | 1 | 0 | ||
| 11 | Z0190006544 | Z16 PINION WHITE | 206.07 | 1 | 0 | ||
| 12/a | Z0190006547CF | TURRET CUP CONNEC. 5C. RAL7016 | 485.66 | 1 | 0 | ||
| 12/b | Z0190006537CY | TURRET CUP CONNEC. 4C. RAL9018 | 573.69 | 1 | 0 | ||
| 13 | VIT0002101 | SCREW COUNT FLAT HEAD M3.5X13 | 96.74 | 1 | 0 | ||
| 14 | Z0190006554CYR | § TURRET STOPPER LEVER+PIN | 124.80 | 1 | 0 | ||
| 16/a | Z0190006538CF | CUPS REDUCER D.70 RAL7016 | 448.89 | 1 | 0 | ||
| 16/b | Z0190006539CY | CUPS REDUCER D.73 RAL9018 | 404.39 | 1 | 0 | ||
| 17 | Z0190006521CYR | LOWER/UPPER CUP DROP MECH. | 985.82 | 1 | 0 | ||
| 18 | Z0190006511NA | CUPS TURRET SPINDLE BLACK | 279.59 | 1 | 0 | ||
| 19 | Z0190006528 | Z26 WHEEL WHITE | 198.33 | 1 | 0 | ||
| 20/a | Z0190006523 | TOOTHED RING NUT D.70/73 | 412.13 | 1 | 0 | ||
| 20/b | Z0190006507 | TOOTHED RING NUT D.78/80 WHITE | 367.63 | 1 | 0 | ||
| 21/a | Z0190006506IC | SPLIT UP D.70/78-ORANGE PL | 161.56 | 1 | 0 | ||
| 21/b | Z0190006551GJ | SPLIT UP D.70/78-YELLOW PP | 154.79 | 1 | 0 | ||
| 21/c | Z0190006552CI | SPLIT UP D.73-GREY PL | 154.79 | 1 | 0 | ||
| 21/d | Z0190006502 | CUP SPLITTER D.73/80 PP WHITE | 154.79 | 1 | 0 | ||
| 23 | VIT0002456 | SCREW HEAD TAP M3.5X25 | 96.74 | 1 | 0 | ||
| 24/a | Z0190006514CY | CUPS CHUTE 70/73 RAL9018 | 514.68 | 1 | 0 | ||
| 24/b | Z0190006515CY | CUPS CHUTE 78/80 RAL9018 | 455.67 | 1 | 0 | ||
| 25 | VIT0002468 | SCREW HEAD TAP M3.5X30 | 96.74 | 1 | 0 | ||
| 26 | Z0190006522CY | MOTOR SUPPORT RAL9018 | 970.34 | 1 | 0 | ||
| 27 | Z0090002114R2 | § GEARBOX MOTOR 11RPM 24V DC | 2 387.65 | 1 | 0 | ||
| 28 | SCH0007000 | SPLIT UP SENSOR | 806.85 | 1 | 0 | ||
| 29 | VIT0002002 | SCREW ST HEAD CAP M3.5X6.5 | 96.74 | 1 | 0 | ||
| 30 | Z0190006518 | TOOTHED SHAFT Z18 WHITE | 110.29 | 1 | 0 | ||
| 31 | Z0090002123R | § GEARBOX MOTOR 5,5RPM 24V DC | 2 838.47 | 1 | 0 | ||
| 32 | ELE0002258CL | § PUSH BUTTON RED | 1 684.32 | 1 | 0 | ||
| 100/a | Z0190006501CL | § CUPS DISPENSER 5C. D.70 PL | 14 542.59 | 1 | 0 | ||
| 100/b | Z0190006501CL0 | § CUPS DISPENSER 5C. D.70 PP | 14 542.59 | 1 | 0 | ||
| 100/c | Z0190006501CL1 | § CUPS DISPENSER 5C. D.73 PL | 14 308.47 | 1 | 0 | ||
| 100/d | Z0190006501CL2 | § CUPS DISPENSER 5C. D.73 PP | 14 268.80 | 1 | 0 | ||
| 100/e | Z0190006501CL3 | § CUPS DISPENSER 5C. D.78 PL | 13 989.21 | 1 | 0 | ||
| 100/f | Z0190006500CL | § CUPS DISPENSER 4C. D.70 PL | 15 990.85 | 1 | 0 | ||
| 100/g | Z0190006500CL0 | § CUPS DISPENSER 4C. D70 PP | 14 571.61 | 1 | 0 | ||
| 100/h | Z0190006500CL1 | § CUPS DISPENSER 4C. D.73 PL | 14 366.51 | 1 | 0 | ||
| 100/i | Z0190006500CL2 | § CUPS DISPENSER 4C. D.73 PP | 14 586.12 | 1 | 0 | ||
| 100/l | Z0190006500CL3 | § CUPS DISPENSER 4C. D.78 PL | 14 048.23 | 1 | 0 | ||
| 100/m | Z0190006500CL5 | § CUPS DISPENSER 4C. D.80 PP | 13 821.84 | 1 | 0 | ||
| 101/a | Z0190006534CL0R | § TURRET SUPPORT-5COLUMNS | 5 094.55 | 1 | 0 | ||
| 101/b | Z0190006534CLR | § TURRET SUPPORT-4COLUMNS | 5 183.55 | 1 | 0 | ||
| 101/c | Z0190006534CL1R | § TURRET SUPPORT-4COLUMNS | 5 044.24 | 1 | 0 | ||
| 102/a | Z0190006521CLR | § CUP DROP MECH. D.70 PL | 3 919.11 | 1 | 0 | ||
| 102/b | Z0190006521CL0R | § CUP DROP MECH. D.70 PP | 3 875.57 | 1 | 0 | ||
| 102/c | Z0190006521CL1R | § CUP DROP MECH. D.73 PL | 3 816.56 | 1 | 0 | ||
| 102/d | Z0190006521CL2R | § CUP DROP MECH. D.73 PP | 3 816.56 | 1 | 0 | ||
| 102/e | Z0190006521CL3R | § CUP DROP MECH. D.78 PL | 3 816.56 | 1 | 0 | ||
| 102/f | Z0190006521CL5R | § CUP DROP MECH. D.80-PP | 3 307.68 | 1 | 0 | ||
| 103 | Z0190006522CLR | § CUPS DISPENSER MOTOR SUPPORT | 12 436.47 | 1 | 0 |
