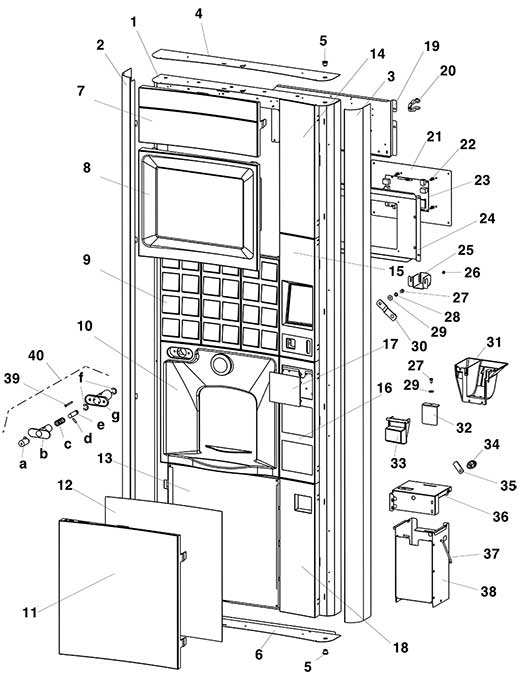

external door
LUCE X2 premium
Руководство
| № | Код | Название | Примечание | Цена, ₽ | Добавить | Мин. заказ | В корзине |
|---|---|---|---|---|---|---|---|
| 1 | Z0020042005 | § DOOR | 40 209.79 | 1 | 0 | ||
| 2/a | Z0020042058DA | LEFT DOOR COVER RAL9006 | 13 606.10 | 1 | 0 | ||
| 2/b | Z0020042840CM | LEFT DOOR COVER RAL9006 | 13 877.96 | 1 | 0 | ||
| 3/a | Z0020042013DA | RIGHT DOOR COVER RAL9006 | 14 201.08 | 1 | 0 | ||
| 3/b | Z0020042838CM | RIGHT DOOR COVER RAL9006 | 9 222.62 | 1 | 0 | ||
| 4 | Z0020042061 | DOOR UPPER CLOSING PLATE | 1 721.08 | 1 | 0 | ||
| 5 | Z0020034156 | DOOR HINGE BUSH | 235.09 | 1 | 0 | ||
| 6 | Z0020042075 | DOOR LOWER CLOSING PLATE | 1 713.34 | 1 | 0 | ||
| 7/a | Z0020042436DA | UPPER FRAME (RAL 9022) | 4 397.99 | 1 | 0 | ||
| 7/b | Z0020042436AJ | UPPER FRAME (RAL 9010) | 0.00 | 1 | 0 | ||
| 7/c | Z0020042436NA | UPPER FRAME BLACK | 2 699.16 | 1 | 0 | ||
| 8 | MONITOR | ||||||
| 9 | KEYBOARD | ||||||
| 10 | 1 turret cups station | ||||||
| 11 | Z0020042015 | PLEXIGLASS PICTURE | 6 486.70 | 1 | 0 | ||
| 12 | Z0020042320 | GRAPHIC PANEL LUCE COVER | 2 280.26 | 1 | 0 | ||
| 13 | bottom lighting kit | ||||||
| 14/a | Z0020042042DA | PAY. SYSTEM PANEL RAL9022 | 3 802.05 | 1 | 0 | ||
| 14/b | Z0020042042NA | PAY. SYSTEM PANEL BLACK | 1 904.89 | 1 | 0 | ||
| 14/c | Z0020042042AJ | PAY. SYSTEM PANEL (RAL 9010) | 7 582.81 | 1 | 0 | ||
| 14/d | Z0020042920DA | PAY. SYSTEM PANEL RAL9022 | 3 897.82 | 1 | 0 | ||
| 14/e | Z0020042920AJ | PAY. SYSTEM PANEL RAL9010 | 0.00 | 1 | 0 | ||
| 14/f | Z0020042920NA | PAY. SYSTEM PANEL RAL9005 | 2 780.43 | 1 | 0 | ||
| 15/a | display kit | ||||||
| 16/a | Z0020042044DA | INSTRUC. MODULE FRAME RAL9022 | 1 904.89 | 1 | 0 | ||
| 16/b | Z0020042044AJ | INSTRUC.MODULE FRAME RAL9010L | 7 582.81 | 1 | 0 | ||
| 16/c | Z0020042044NA | INSTRUC. MODULE FRAME BLACK | 1 845.88 | 1 | 0 | ||
| 17/a | Z0020042079ND | INSTRUCTION MODULE (BLACK) | 551.44 | 1 | 0 | ||
| 17/b | Z0020042079AJ | INSTRUCTION MODULE (RAL 9010) | 1 986.16 | 1 | 0 | ||
| 18/a | Z0020042045DA | COIN RETURN FRAME RAL9022 | 2 993.27 | 1 | 0 | ||
| 18/b | Z0020042045AJ | COIN RETURN FRAME RAL9010L | 7 611.83 | 1 | 0 | ||
| 18/c | Z0020042045NA | COIN RETURN FRAME BLACK | 1 904.89 | 1 | 0 | ||
| 19 | Z0020042401-06 | MONITOR UPPER PLATE | 0.00 | 1 | 0 | ||
| 20 | Z0020042175 | PLEXIGLASS HOOK | 228.32 | 1 | 0 | ||
| 21 | Z0020042534 | TV CARD COVER | 0.00 | 1 | 0 | ||
| 22 | ELE0062003 | BOARD SUPPORT | 19.35 | 1 | 0 | ||
| 23 | SCH0009021 | TFT 15" GPU BOARD | 66 831.86 | 1 | 0 | ||
| 24 | Z0020042533 | 15" MONITOR SUPPORT | 0.00 | 1 | 0 | ||
| 25 | Z0020042280 | LOCK PROTECTION | 1 037.10 | 1 | 0 | ||
| 26 | VIT0004815 | NUT M4 | 96.74 | 1 | 0 | ||
| 27 | VIT0000208 | SCREW HEX HEAD M5X10 | 96.74 | 1 | 0 | ||
| 28 | VIT0003104 | SPRING WASHER 5,3 | 96.74 | 1 | 0 | ||
| 29 | VIT0003302 | WASHER 5,5X15X1,6 | 96.74 | 1 | 0 | ||
| 30 | Z0020042036 | LOCK PLATE | 2 868.47 | 1 | 0 | ||
| 31 | Z0020042014CY | COINS RETURN CHUTE RAL9018 | 603.68 | 1 | 0 | ||
| 32 | Z0020042030 | COIN RETURN FLAP COUNTERWEIGHT | 985.82 | 1 | 0 | ||
| 33 | Z0020042056XC | COINS RETURN FLAP CHROME | 1 596.28 | 1 | 0 | ||
| 34 | SER0000010 | LOCK MM20 C.3480 | 1 148.35 | 1 | 0 | ||
| 35 | SER0001005 | LOCK PLATE | 49.34 | 1 | 0 | ||
| 36 | Z0020042095 | COIN BOX LID | 1 816.86 | 1 | 0 | ||
| 37 | Z0030006258 | COIN BOX HOOK | 816.52 | 1 | 0 | ||
| 38 | Z0030006255CL0 | §COIN BOX | 7 787.91 | 1 | 0 | ||
| 39 | VIT0000125 | SCREW COUNT FLAT HEAD M4X45 | 96.74 | 1 | 0 | ||
| 40/1 | 1150003200DA | LOCK RAL9022 | 8 200.04 | 1 | 0 | ||
| 40/2 | 1150003200AJ | LOCK (RAL9010) | 0.00 | 1 | 0 | ||
| 40/3 | 1150003200NA | LOCK BLACK | 7 038.14 | 1 | 0 | ||
| 40/4 | 1150003213NA | LOCK BLACK | 13 261.69 | 1 | 0 | ||
| 40/5 | 1150003213AJ | LOCK RAL 9010 | 0.00 | 1 | 0 | ||
| 40/6 | 1150003213NA | LOCK BLACK | 13 261.69 | 1 | 0 | ||
| 40/a1 | SER0000003 | LOCK c.7851 | 1 731.72 | 1 | 0 | ||
| 40/a2 | SER0000022 | LOCK | 8 771.80 | 1 | 0 | ||
| 40/b1 | 1150002112DA | SLEEVE RAL9022 | 2 662.40 | 1 | 0 | ||
| 40/b2 | 1150002112AJ | SLEEVE (RAL9010) | 0.00 | 1 | 0 | ||
| 40/b3 | 1150002112NA | SLEEVE BLACK | 1 708.50 | 1 | 0 | ||
| 40/c | 1150002113 | SPRING | 49.34 | 1 | 0 | ||
| 40/d | VIT0005203 | DOWEL PIN 4X18 | 96.74 | 1 | 0 | ||
| 40/e | 1150002111 | PIN | 382.14 | 1 | 0 | ||
| 40/f | VIT0006508 | RING 10 | 96.74 | 1 | 0 | ||
| 40/g1 | 1150003126DA | SLEEVE (RAL9022) | 2 662.40 | 1 | 0 | ||
| 40/g2 | 1150003126AJ | SLEEVE (RAL9010) | 0.00 | 1 | 0 |
