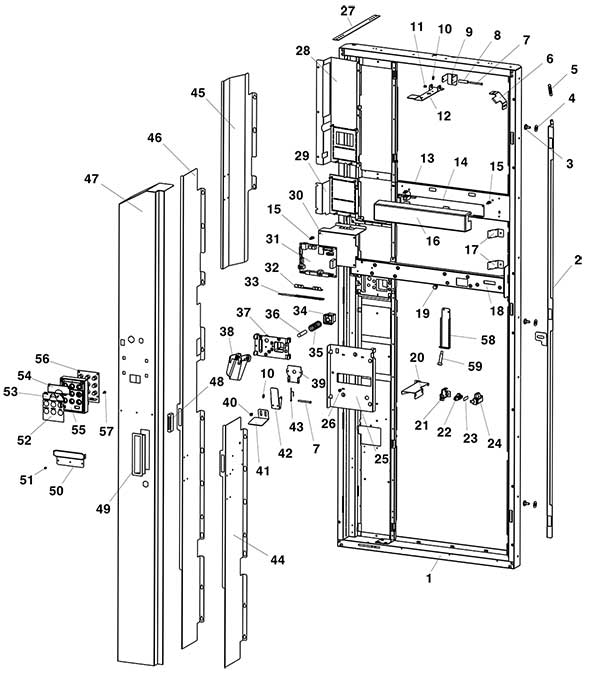

internal door
LUCE X2 premium
Руководство
| № | Код | Название | Примечание | Цена, ₽ | Добавить | Мин. заказ | В корзине |
|---|---|---|---|---|---|---|---|
| 1 | Z0020042005 | § DOOR | 40 268.69 | 1 | 0 | ||
| 2 | Z0020042913-02 | DOOR BLOCK SHAFT | 7 373.02 | 1 | 0 | ||
| 3 | Z0020029923 | FIXING SCREW | 286.78 | 1 | 0 | ||
| 4 | Z0020042912 | SPACER | 228.65 | 1 | 0 | ||
| 5 | Z0020042911 | DOOR BLOCK SHAFT SPRING | 110.45 | 1 | 0 | ||
| 6 | Z0020042162 | DOOR SWITCH SUPPORT | 849.69 | 1 | 0 | ||
| 7 | Z0020034173 | DOOR STOP IN | 294.53 | 1 | 0 | ||
| 8 | Z0020038167 | HINGE SPACER | 419.52 | 1 | 0 | ||
| 9 | Z0020042124 | UPPER HINGE TURRET SUPPORT | 603.60 | 1 | 0 | ||
| 10 | VIT0007102 | BENZING CLIP | 96.89 | 1 | 0 | ||
| 11 | ELT0030560 | MAGNET D.8X4 | 1 046.37 | 1 | 0 | ||
| 12/a | Z0020042188 | TURRET 5COLUMNS UPPER HINGE | 1 141.32 | 1 | 0 | ||
| 12/b | Z0020042126 | TURRET 4COLUMNS UPPER HINGE | 1 244.98 | 1 | 0 | ||
| 13 | Z0020042532 | KEYPAD BOARD SUPPORT | 0.00 | 1 | 0 | ||
| 14 | SCH0008420 | KEYPAD BOARD | 10 113.92 | 1 | 0 | ||
| 15 | ELE0062003 | BOARD SUPPORT | 19.38 | 1 | 0 | ||
| 16 | Z0020042173NA | KEYPAD COVER BLACK | 353.63 | 1 | 0 | ||
| 17 | Z0020042348 | USB CABLE SUPPORT | 382.70 | 1 | 0 | ||
| 18/a | 1 turret cups station | ||||||
| 19 | VIT0000236 | SCREW HEX HEAD M6X11 | 24.22 | 1 | 0 | ||
| 20 | Z0400009078 | SENSOR SUPPORT | 1 120.00 | 1 | 0 | ||
| 21 | Z0020040671 | CUP SENSOR LOWER COVER | 77.51 | 1 | 0 | ||
| 22 | ELT0006813 | DISTANCE SENSOR | 1 937.72 | 1 | 0 | ||
| 23 | Z0020040675 | RED SENSOR FILTER | 81.38 | 1 | 0 | ||
| 24 | Z0020040672 | CUP SENSOR UPPER COVER | 73.63 | 1 | 0 | ||
| 25 | Z0020042063 | PAYM SYSTEM SUPPORT | 2 725.40 | 1 | 0 | ||
| 26 | 4060010126 | PAYM SYSTEM FIXING SCREW | 124.98 | 1 | 0 | ||
| 27 | Z0020042964 | DOOR STOPPING BELT | 697.58 | 1 | 0 | ||
| 28 | Z0020042106 | PAY. SYSTEM PLATE | 2 879.45 | 1 | 0 | ||
| 29/a | Z0020042149 | PAYMENT SYSTEM PLATE | 2 467.68 | 1 | 0 | ||
| 29/b | Z0020042918 | PAYMENT SYSTEM PLATE | 1 649.97 | 1 | 0 | ||
| 30/a | Z0020042257 | CPU SUPPORT | 2 150.87 | 1 | 0 | ||
| 30/b | Z0020042922 | CPU SUPPORT | 1 077.37 | 1 | 0 | ||
| 31 | SCH0007904 | CPU BOARD (2017) | 26 757.95 | 1 | 0 | ||
| 32 | Z0020042972 | LIGHT CHANGE GIVER SUPPORT | 398.20 | 1 | 0 | ||
| 33 | Z0020042971 | INTRODUCTIONS COINS LED STRIP | 9 546.17 | 1 | 0 | ||
| 34 | Z0020042062XC | COIN RETURN BUTTON CHROMO | 574.53 | 1 | 0 | ||
| 35 | 4050010074 | COIN RETURN BUTTON SPRING | 29.07 | 1 | 0 | ||
| 36 | Z0020034023 | COIN RETURN PIN | 132.73 | 1 | 0 | ||
| 37 | Z0020042083XCCL | § CHROMO COINS INLET GUIDE | 0.00 | 1 | 0 | ||
| 38 | Z0020042051CY | COINS ENTRY CHUTE RAL9018 | 242.21 | 1 | 0 | ||
| 39 | Z0020042064 | COIN RETURN BUTTON PLATE | 398.20 | 1 | 0 | ||
| 40 | VIT0002401 | SCREW ST HEAD CAP M3.5X9.5 | 96.89 | 1 | 0 | ||
| 41 | Z0020042052 | LOWER BRACKET | 390.45 | 1 | 0 | ||
| 42 | Z0020042057 | UPPER BRACKET | 443.74 | 1 | 0 | ||
| 43 | Z0020005013 | COIN REJECT BUTTON SPRING | 47.47 | 1 | 0 | ||
| 44 | Z0020042345R | § PAYMENT SYSTEM COVER 4C X2 | 13 058.28 | 1 | 0 | ||
| 45 | Z0020042110 | PAY. SYSTEM SUPPORT COVER | 2 924.02 | 1 | 0 | ||
| 46 | Z0020042122 | 5C COIN BOX RETURN PROTECTION | 0.00 | 1 | 0 | ||
| 47/a | Z0020042097CL | §PAYM SYSTEM COVER 5C | 0.00 | 1 | 0 | ||
| 47/b | Z0020042919CL | §PAYM SYSTEM COVER 4C | 13 247.21 | 1 | 0 | ||
| 48 | ELE0000103 | MAGNETIC CLICK-LOCK | 2 024.92 | 1 | 0 | ||
| 49 | Z0020034823 | HANDLE | 186.02 | 1 | 0 | ||
| 50/a | Z0020042142 | INGREDIENT CANISTER SUPPORT | 1 406.78 | 1 | 0 | ||
| 50/b | Z0020042150 | INGREDIENT CANISTER SUPPORT | 1 435.85 | 1 | 0 | ||
| 51 | VIT0007021 | BLIND RIVET 3X6 | 96.89 | 1 | 0 | ||
| 52 | Z0020042165 | CLEANING LABEL | 854.53 | 1 | 0 | ||
| 53 | Z0020042164 | PROGRAMM LABEL | 729.55 | 1 | 0 | ||
| 54 | Z0020042171 | KEYBOARD COVER | 148.24 | 1 | 0 | ||
| 55 | Z0020042172AH | PROGRAM KEYPAD SUPPORT | 466.02 | 1 | 0 | ||
| 56 | SCH0007182 | PROGRAM KEYPAD | 11 522.64 | 1 | 0 | ||
| 57 | VIT0002469 | SCREW HEAD TAP M3.5X10 | 96.89 | 1 | 0 | ||
| 58 | Z0020042261 | CUPS STATION LED SUPPORT | 1 429.07 | 1 | 0 |
