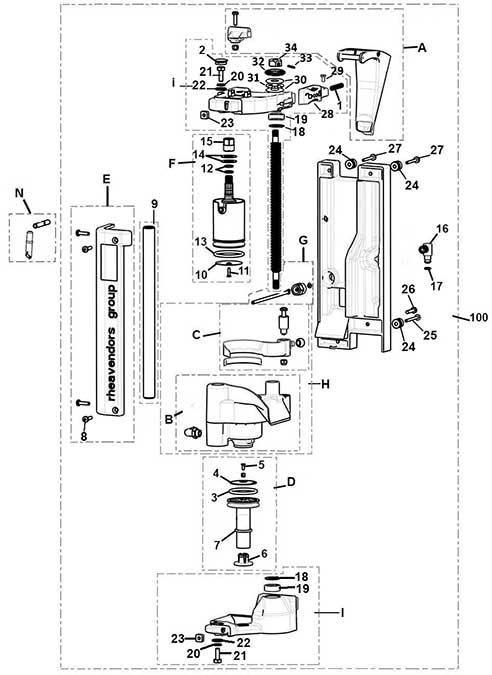

PROFESSIONAL BREWER GROUP D.45

Руководство

№	Код	Название	Цена, ₽	Мин. заказ
A	Z0250014008R	§ CHUTE D. 45	506.71	1
B	Z0250014022R	§ INFUSION CHAMBER D.45	10 060.63	1
C	Z0250014024R	§ BRUSH D.45	2 680.83	1
D	Z0250014028R	§ LOWER FILTER HOLDER D.45	3 247.62	1
E	Z0250014019R	§ FRONTAL COVER	972.73	1
F	Z0250014045R	§ UPPER FILTER HOLDER D.45	4 345.33	1
G	Z0250014086CL1	§WATER INLET TUBE 0,119 mt	858.41	1
H	Z0250014020R	§ INFUSION CHAMBER D.45	10 573.16	1
I	Z0250014005R2	§UPPER SUPPORT WITHOUT CHUTE	12 059.39	1
L	Z0250014012R	§ LOWER SUPPORT	5 745.33	1
N	Z0250008132CL	§ COFFEE OUTLET PIPE	319.72	1
1	Z0250014081	SPRING	228.65	1
2	GUA0011022	PLUG	96.89	1
3	GUA0000097	OR 4131 RED SILICONE LSR70	116.26	1
4	Z0250014029	COFFEE FILTER DIAM. 37.3	619.10	1
5	VIT0000121	SCREW COUNT FLAT HEAD M3X8	96.89	1
6	Z0250014027R1	LOWER PISTON LOCK+SET SCREW	341.04	1
7	GUA0000103	OR 3075 SILICON	96.89	1
8	VIT0001009	SCREW HEAD TAP CAP M4X16	96.89	1
9	Z0250014013-04	CYLINDRICAL GUIDE	3 822.15	1
10	Z0250008211	COFFEE FILTER 37,3	1 392.25	1
11	VIT0000129	SCREW COUNT HEAD M3X12	96.89	1
12	GUA0000045	OR 108 VITON 80 BLACK	96.89	1
13	GUA0000097	OR 4131 RED SILICONE LSR70	116.26	1
14	Z0250014048	SPRING	52.32	1
15	Z0250014086	NUT	132.73	1
16	Z0250014085	MALE CONNECTOR	198.62	1
17	GUA0000004	OR 104 NBR AL 75 BLACK	96.89	1
18	Z0250014077	SPACER	372.04	1
19	VIT0009320	BEARING	1 550.17	1
20	VIT0003113	SPRING WASHER 6,4	96.89	1
21	VIT0000249	SCREW HEX HEAD M6X16	96.89	1
22	Z0250014079	WASHER D.15 D.6,5 SP.1,5	633.63	1
23	VIT0009112	NUT M4	96.89	1
24	Z0250014072	PIN	294.53	1
25	VIT0000033	SCREW HEAD TAP CAP M4X35	96.89	1
26	VIT0001011	SCREW HEAD TAP CAP M4X20	96.89	1
27	VIT0001006	SCREW HEAD TAP CAP M4X30	96.89	1
28	Z0250014082	BREWER STOPPER BUTTON	316.82	1
29	VIT0002009	SCREW ST HEAD CAP M3.5X6.5	96.89	1
30	VIT0009318	SPACER WASHER	271.28	1
31	VIT0009317	BEARING	1 329.27	1
32	GUA0001007	V RING GASKET VA16	222.84	1
33	VIT0007011	SET SCREW 4X4	96.89	1
34	Z0250014071	NUT M8	1 157.79	1
100	Z0250014000CL	COFFEE BREWER VARIFLEX D 45	31 866.74	1
