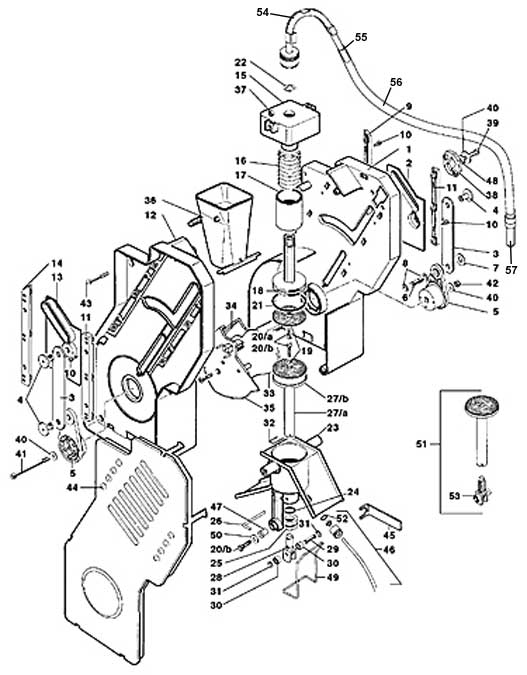

micro coffee group
LUCE
Руководство
| № | Код | Название | Примечание | Цена, ₽ | Добавить | Мин. заказ | В корзине |
|---|---|---|---|---|---|---|---|
| 1 | Z0250008005R | § MICRO BREWER COVERS-L.H+R.H | 1 780.09 | 1 | 0 | ||
| 2 | Z0250008084 | INFUSION CHAMBER CAM-RIGHT | 167.37 | 1 | 0 | ||
| 3 | Z0250008009 | CONNECTING ROD | 152.86 | 1 | 0 | ||
| 4 | Z0250008028 | CONNECTING ROD PIN | 70.62 | 1 | 0 | ||
| 5 | Z0250008011 | RIGHT CRANK | 89.97 | 1 | 0 | ||
| 6 | Z0250008014 | PIN | 147.05 | 1 | 0 | ||
| 7 | Z0250008042 | ANTIVIBRATION WASHER | 60.95 | 1 | 0 | ||
| 8 | VIT0006515 | RING 5 | 96.74 | 1 | 0 | ||
| 9 | Z0250008031 | REAR RIGHT GUIDE | 90.94 | 1 | 0 | ||
| 10 | VIT0002026 | SCREW ST HEAD CAP M3.5X6.5 | 96.74 | 1 | 0 | ||
| 11 | Z0250008033 | FRONTAL GUIDE | 81.27 | 1 | 0 | ||
| 12 | Z0250008005R | § MICRO BREWER COVERS-L.H+R.H | 1 780.09 | 1 | 0 | ||
| 13 | Z0250008085 | INFUSION CHAMBER CAM-LEFT | 167.37 | 1 | 0 | ||
| 14 | Z0250008032 | REAR LEFT GUIDE | 90.94 | 1 | 0 | ||
| 15 | Z0250008086 | UPPER FILTER SUPPORT | 202.20 | 1 | 0 | ||
| 16 | Z0250008024 | UPPER FILTER SPRING | 231.22 | 1 | 0 | ||
| 17 | Z0250008087 | SPRING COVER PIPE | 565.95 | 1 | 0 | ||
| 18/a | Z0250008026R | § UPPER COFFEE FILTER D 36 | 1 678.51 | 1 | 0 | ||
| 18/b | Z0250008208R | § UPPER COFFEE FILTER D.40 | 2 065.49 | 1 | 0 | ||
| 19/a | Z0250008099 | COFFEE FILTER 33,4 | 1 029.36 | 1 | 0 | ||
| 19/b | Z0250008211 | COFFEE FILTER 37,3 | 1 390.21 | 1 | 0 | ||
| 20/a | VIT0001202 | SCREW COUNT FLAT HEAD M3X14 | 96.74 | 1 | 0 | ||
| 20/b | VIT0000121 | SCREW COUNT FLAT HEAD M3X8 | 96.74 | 1 | 0 | ||
| 21/a | GUA0000080 | OR 4112 RED SILICONE LSR70 | 96.74 | 1 | 0 | ||
| 21/b | GUA0000097 | OR 4131 RED SILICONE LSR70 | 116.09 | 1 | 0 | ||
| 22 | VIT0006513 | RING 8 | 134.47 | 1 | 0 | ||
| 23/a | Z0250008046R | § BREWER INFUSION CHAMBER | 1 138.68 | 1 | 0 | ||
| 23/b | Z0250008206R | § LOWER COFFEE FILTER D.40 | 1 138.68 | 1 | 0 | ||
| 24 | GUA0000065 | OR 112 SILICON | 96.74 | 1 | 0 | ||
| 25 | Z0250008053 | LOWER INLET CUP BUSH | 83.20 | 1 | 0 | ||
| 26 | Z0250008029 | FUNNEL PIN | 206.07 | 1 | 0 | ||
| 27/a | Z0250008108 | LOWER FILTER SHAFT | 669.47 | 1 | 0 | ||
| 27/b | Z0250008122 | COFFEE FILTER LOW 36 | 154.79 | 1 | 0 | ||
| 27/c | Z0250008209IC | LOWER COFFEE FILTER D.40 | 154.79 | 1 | 0 | ||
| 28 | Z0250008106 | BEARING SUPPORT | 74.49 | 1 | 0 | ||
| 29 | Z0250008021 | BEARING SHAFT | 132.54 | 1 | 0 | ||
| 30 | Z0250008022 | BEARING | 42.57 | 1 | 0 | ||
| 31 | VIT0006517 | RING 3.2 | 96.74 | 1 | 0 | ||
| 32 | Z0250008027 | LOWER FILTER PIN | 171.24 | 1 | 0 | ||
| 33 | Z0250008083 | CAM | 595.94 | 1 | 0 | ||
| 34 | Z0250008016 | CAM RIGHT | 152.86 | 1 | 0 | ||
| 35 | Z0250008017 | CAM LEFT | 152.86 | 1 | 0 | ||
| 36 | Z0250008036 | COFFEE FUNNEL | 209.93 | 1 | 0 | ||
| 37 | VIT0004803 | NUT M4 | 96.74 | 1 | 0 | ||
| 38 | Z0250008035 | SETTING PLATE | 71.59 | 1 | 0 | ||
| 39 | VIT0000032 | SCREW HEAD TAP CAP M4X8 | 96.74 | 1 | 0 | ||
| 40 | VIT0003309 | WASHER4,3X16X1,5 | 96.74 | 1 | 0 | ||
| 41 | VIT0005523 | SCREW HEX HEAD REC TAP M4X60 | 96.74 | 1 | 0 | ||
| 42 | VIT0004810 | NUT M4 | 96.74 | 1 | 0 | ||
| 43 | VIT0002461 | SCREW HEAD TAP M4.2X26 | 96.74 | 1 | 0 | ||
| 44 | Z0250008039IC | MICRO BREWER COVER-L.H RAL2011 | 477.92 | 1 | 0 | ||
| 44 | Z0250008039CM | MICRO BREWER COVER-L.H RAL9006 | 772.02 | 1 | 0 | ||
| 45 | Z0250008048 | KEY FOR NUT | 409.23 | 1 | 0 | ||
| 46 | Z0250008110CL | § WATER INLET PIPE | 1 061.28 | 1 | 0 | ||
| 47 | VIT0009203 | INSERT | 96.74 | 1 | 0 | ||
| 48 | VIT0003451 | SPRING WASHER 4,2 | 96.74 | 1 | 0 | ||
| 49 | Z0250008094 | SCRAPER | 279.59 | 1 | 0 | ||
| 50 | Z0250008088 | WASHER | 19.35 | 1 | 0 | ||
| 51 | Z0250008109R | § LOW.COFFEE FILTER D.36+BEAR. | 2 639.18 | 1 | 0 | ||
| 52 | GUA0000061 | OR 2010 VITON 80 BLACK | 96.74 | 1 | 0 | ||
| 53 | Z0250008107R | BEARING SUPPORT | 557.25 | 1 | 0 | ||
| 54 | Z0250008134CL | § COFFEE OUTLET PIPE | 1 403.76 | 1 | 0 | ||
| 55 | FASC000105 | CLAMP | 96.74 | 1 | 0 | ||
| 56 | TSIL06/09T-10 | SILICON HOSE 6X9 MT.10 | 5 111.00 | 1 | 0 | ||
| 57 | Z0380010657NA | ESPRESSO NOZZLE D. 5,7 | 29.02 | 1 | 0 | ||
| 100 | Z0250008001R | COFFEE BREWER MICRO D.36 | 10 892.43 | 1 | 0 | ||
| 101 | Z0250008201R | COFFEE BREWER MICRO D.40 | 11 195.24 | 1 | 0 | ||
| 104 | Z0250008108R | § LOWER COFFEE FILTER D.36 | 2 080.97 | 1 | 0 |
