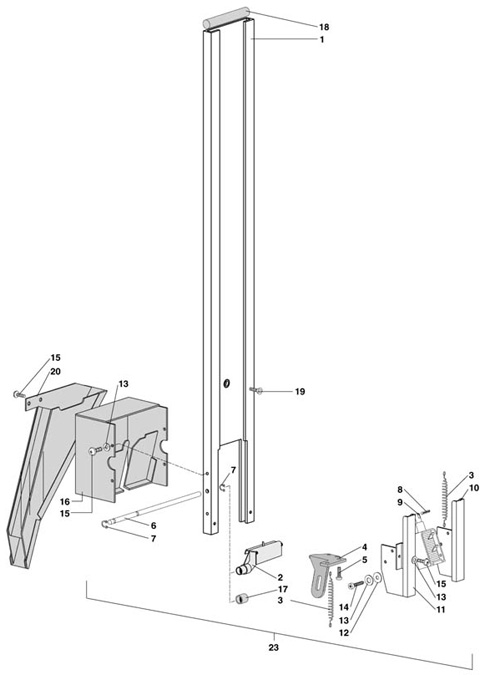

stirrer dispenser - close station
LUCE
Руководство
| № | Код | Название | Примечание | Цена, ₽ | Добавить | Мин. заказ | В корзине |
|---|---|---|---|---|---|---|---|
| 1/a | Z0450009125 | STICKS CONTAINER | 1 706.57 | 1 | 0 | ||
| 1/b | Z0450009137 | STIRRERS CONTAINER MM.104 | 2 243.50 | 1 | 0 | ||
| 2 | Z0450002003 | STIRRER EJECTOR | 191.55 | 1 | 0 | ||
| 3 | Z0450003010 | SPRING | 81.27 | 1 | 0 | ||
| 4 | Z0450009141 | ELECTROMAGNET CONNECTING ROD | 912.30 | 1 | 0 | ||
| 5 | VIT0002469 | SCREW HEAD TAP M3.5X10 | 96.74 | 1 | 0 | ||
| 6/a | Z0450003008 | STICKS DISPENSER PIN 89 mm | 124.80 | 1 | 0 | ||
| 6/b | Z0450003032 | STIRRER EJECTOR PIN | 161.56 | 1 | 0 | ||
| 7 | VIT0006504 | RING 5 | 96.74 | 1 | 0 | ||
| 8 | VIT0005211 | DOWEL PIN 2.5X12 | 96.74 | 1 | 0 | ||
| 9 | ELE0000055 | ELECTROMAGNET 5% 24V DC | 2 496.00 | 1 | 0 | ||
| 10 | Z0450009139 | ELECTROMAGNET RIGHT SUPPORT | 912.30 | 1 | 0 | ||
| 11 | Z0450009140 | ELECTROMAGNET LEFT SUPPORT | 912.30 | 1 | 0 | ||
| 12 | VIT0003003 | WASHER 4,3X8X0,8 | 96.74 | 1 | 0 | ||
| 13 | VIT0003405 | SPRING WASHER 4,3 | 96.74 | 1 | 0 | ||
| 14 | VIT0000021 | SCREW HEAD TAP CAP M4X6 | 96.74 | 1 | 0 | ||
| 15 | VIT0002401 | SCREW ST HEAD CAP M3.5X9.5 | 96.74 | 1 | 0 | ||
| 16/a | Z0450009126 | STICKS FEEDER | 2 162.23 | 1 | 0 | ||
| 16/b | Z0450009138 | STIRRERS MM.104 CHUTE | 3 309.62 | 1 | 0 | ||
| 17 | Z0450003031 | SPACER | 110.29 | 1 | 0 | ||
| 18/a | 4001012030 | STIRRER WEIGHT 89MM | 176.07 | 1 | 0 | ||
| 18/b | Z0450003033 | STIRRER WEIGHT 104MM | 183.81 | 1 | 0 | ||
| 19 | VIT0000106 | SCREW COUNT FLAT HEAD M4X8 | 96.74 | 1 | 0 | ||
| 20 | Z0450009127 | STIRRER CHUTE MM.104 | 2 448.60 | 1 | 0 | ||
| 23/a | Z0450009146CL | § STIRRER DISPENSER | 12 557.40 | 1 | 0 | ||
| 23/b | Z0450009156CL | § STIRRER DISPENSER 104 | 14 387.80 | 1 | 0 |
