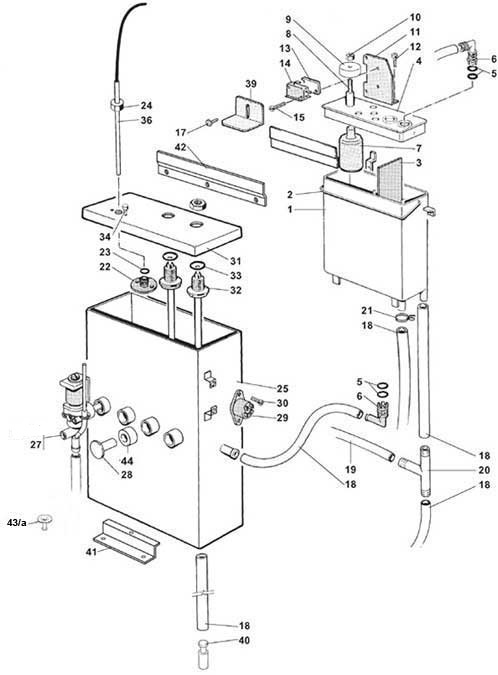

water inlet panel
LUCE
Руководство
| № | Код | Название | Примечание | Цена, ₽ | Добавить | Мин. заказ | В корзине |
|---|---|---|---|---|---|---|---|
| 1 | Z0800009201R | § AIR BREAK | 2 182.55 | 1 | 0 | ||
| 2 | 800000035 | FIXING COVER RING | 123.83 | 1 | 0 | ||
| 3 | 800000010 | AIR BREAK SPLITTER | 183.81 | 1 | 0 | ||
| 4 | Z0800009201R | § AIR BREAK | 2 182.55 | 1 | 0 | ||
| 5 | GUA0000043 | OR 109 NBR AL 75 BLACK | 96.74 | 1 | 0 | ||
| 6 | Z0800009211 | ELBOW CONNECTOR | 97.71 | 1 | 0 | ||
| 7 | 600001065 | WASTE FLOAT | 386.01 | 1 | 0 | ||
| 8 | 800000016 | WASTE FLOAT SHAFT INOX | 212.84 | 1 | 0 | ||
| 9 | 800000017 | DISK | 118.03 | 1 | 0 | ||
| 10 | VIT0004812 | NUT M3.5 | 96.74 | 1 | 0 | ||
| 11 | 800000020A | AIR BREAK MICROSWITCH HOLDER | 479.85 | 1 | 0 | ||
| 12 | VIT0002014 | SCREW ST HEAD CAP M2.9X13 | 96.74 | 1 | 0 | ||
| 13 | 4600010014 | SPACER | 42.57 | 1 | 0 | ||
| 14 | ELE0001514 | MICROSWITCH 3A 125-250VA | 590.14 | 1 | 0 | ||
| 15 | VIT0002012 | SCREW ST HEAD CAP M2.9X16 | 96.74 | 1 | 0 | ||
| 17 | VIT0002401 | SCREW ST HEAD CAP M3.5X9.5 | 96.74 | 1 | 0 | ||
| 18/a | TSIL07/11T-10 | SILICON HOSE 7X11 MT.10 | 9 566.07 | 1 | 0 | ||
| 18/b | TSIL07/11T-50 | SILICON HOSE 7X11 MT.50 | 27 334.11 | 1 | 0 | ||
| 19/a | TSIL05/08T-10 | SILICON HOSE 5X8 MT.10 | 4 780.13 | 1 | 0 | ||
| 19/b | TSIL05/08T-50 | SILICON HOSE 5X8 MT.50 | 15 811.87 | 1 | 0 | ||
| 20 | Z0100003023 | T CONNECTOR 462 TS UL | 131.57 | 1 | 0 | ||
| 21 | FASC000109 | CLAMP | 112.22 | 1 | 0 | ||
| 22 | NL202101016 | PROBE HOLDER | 514.68 | 1 | 0 | ||
| 23 | GUA0000069 | OR 2015 VITON 80 BLACK | 96.74 | 1 | 0 | ||
| 24 | Z0600011107 | PROBE NUT | 139.31 | 1 | 0 | ||
| 25/a | Z0600012052 | BOILER TANK 4 VALVE AISI 316 | 10 197.81 | 1 | 0 | ||
| 25/b | Z0600012051 | BOILER TANK 3 VALVE AISI 316 | 13 174.63 | 1 | 0 | ||
| 25/c | Z0600012053 | BOILER TANK 5 VALVE AISI 316 | 12 394.87 | 1 | 0 | ||
| 26 | Z0110001098 | VALVE 2W 24V DC | 7 377.71 | 1 | 0 | ||
| 27 | Z0110001108 | VALVE 2W 24V DC | 4 765.62 | 1 | 0 | ||
| 27/b | Z0110010133 | CORE | 1 886.51 | 1 | 0 | ||
| 28 | Z0600011036 | SOLEN. VALVE PLUG | 242.83 | 1 | 0 | ||
| 29 | ELE0009037 | CLICSON 90g | 2 207.70 | 1 | 0 | ||
| 30 | VIT0000014 | SCREW HEAD TAP CAP M4X16 | 96.74 | 1 | 0 | ||
| 31 | Z0600011101 | LID | 3 111.29 | 1 | 0 | ||
| 32 | Z0600011105 | HEATING ELEMENT 1300 W 230 V | 5 671.15 | 1 | 0 | ||
| 33 | GUA0000016 | OR 121 RED SILICONE LSR70 | 96.74 | 1 | 0 | ||
| 34 | VIT0001105 | SCREW HEX HEAD M3X8 | 96.74 | 1 | 0 | ||
| 36 | ELE0000955R | § PROBE I + ACCESSORIES | 3 121.94 | 1 | 0 | ||
| 39 | Z0810011025 | LOCKING DEVICE | 231.22 | 1 | 0 | ||
| 40 | 650001057 | DRAINER PLUG | 42.57 | 1 | 0 | ||
| 41 | Z0010015141 | LOWER BOILER BRACKET | 397.62 | 1 | 0 | ||
| 42 | Z0010015142 | UPPER BOILER BRACKET | 397.62 | 1 | 0 | ||
| 43 | Z0110001098 | VALVE 2W 24V DC | 7 377.71 | 1 | 0 | ||
| 43/a | Z0110010131 | MEMBRANE | 2 089.67 | 1 | 0 | ||
| 44 | GUA0002006 | GASKET 4979 W.132.013.008 | 540.80 | 1 | 0 |
