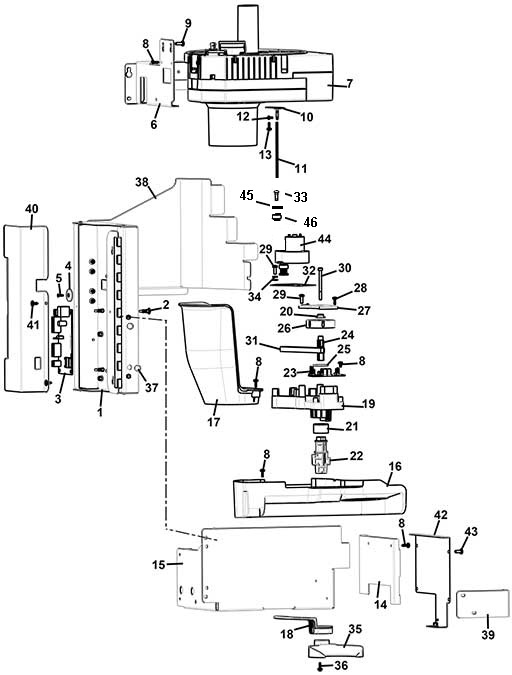

TURRET DB SUPPORT
rhea Business line doppio E
Руководство
Сервисная книжка
| № | Артикул | Название | Примечание | Цена, ₽ | Добавить в корзину | Мин. заказ | В корзине |
|---|---|---|---|---|---|---|---|
| 1 | Z0190014005-09NA | SUPPORT DB BLACK | 12 805.47 | 1 | 0 | ||
| 2 | ELE0062020 | BOARD SUPPORT | 90.24 | 1 | 0 | ||
| 3 | SCH0009601 | KEYPAD BOARD | 16 583.94 | 1 | 0 | ||
| 4 | H00017067 | MAGNET 20X3,2 SP3 | 525.21 | 1 | 0 | ||
| 5 | VIT0002113 | SCREW COUNT FLAT HEAD M2.9X9,5 | 90.24 | 1 | 0 | ||
| 6 | Z0190014011NA | UPPER DB SUPPORT BLACK | 2 613.43 | 1 | 0 | ||
| 7 | cups loader | ||||||
| 8 | VIT0002469 | SCREW HEAD TAP M3.5X10 | 90.24 | 1 | 0 | ||
| 9 | VIT0000014 | SCREW HEAD TAP CAP M4X16 | 90.24 | 1 | 0 | ||
| 10 | Z0190014039 | D.80 CUP SLOW MOTION SUPPORT | 645.24 | 1 | 0 | ||
| 11 | Z0190014042 | CUP SLOW MOTION | 569.43 | 1 | 0 | ||
| 12 | VIT0000002 | SCREW HEAD TAP CAP M3X6 | 90.24 | 1 | 0 | ||
| 13 | VIT0002009 | SCREW ST HEAD CAP M3.5X6.5 | 90.24 | 1 | 0 | ||
| 14/a | Z0190014036NA | STIRRER DISP. SUP. D.80 BLACK | 2 133.34 | 1 | 0 | ||
| 14/b | Z0190014018NA | STIRRER SUPPORT 70/73 | 2 133.34 | 1 | 0 | ||
| 15/a | Z0190014034NA | LOWER DB SUPPORT D.80 (BLACK) | 7 334.04 | 1 | 0 | ||
| 15/b | Z0190014016NA | LOWER SUPPORTO DB 70-73 | 5 700.64 | 1 | 0 | ||
| 16 | Z0020043050NA | CUP STATION (BLACK) | 1 207.45 | 1 | 0 | ||
| 17 | Z0190014017NA | CUP CHUTE (BLACK) | 679.53 | 1 | 0 | ||
| 18 | Z0190014029NA | CUP STOP (BLACK) | 576.65 | 1 | 0 | ||
| 19 | Z0190014051NAR | § FORK SUPPORT (BLACK)+INSERT | 2 325.56 | 1 | 0 | ||
| 20 | VIT0009330 | BEARING D.8 | 102.88 | 1 | 0 | ||
| 21 | VIT0009327 | BEARING | 279.75 | 1 | 0 | ||
| 22 | Z0190014026NAR | § FORK SHAFT (BLACK)+INSERT | 1 186.69 | 1 | 0 | ||
| 23 | SCH0006940 | TUBES SENSOR | 1 995.27 | 1 | 0 | ||
| 24 | Z0190014052 | FORK PULLEY | 2 942.82 | 1 | 0 | ||
| 25 | Z0190014023 | FORK SHAFT SPACER | 123.63 | 1 | 0 | ||
| 26 | Z0190014054NA | OPTIC READER DISC (BLACK) | 569.43 | 1 | 0 | ||
| 27 | Z0190014053-02 | FORK SHAFT PLATE | 2 352.63 | 1 | 0 | ||
| 28 | VIT0002469 | SCREW HEAD TAP M3.5X10 | 90.24 | 1 | 0 | ||
| 29 | VIT0000013 | SCREW HEAD TAP CAP M4X12 | 90.24 | 1 | 0 | ||
| 30 | VIT0005544 | SCREW ALLEN M4X50 | 90.24 | 1 | 0 | ||
| 31 | Z0190014025 | TOOTHED BELT | 2 078.29 | 1 | 0 | ||
| 32 | Z0190014055-03 | FORK MOTOR REINFORCEMENT | 864.53 | 1 | 0 | ||
| 33 | VIT0001010 | M 3x12 TCB SCREW | 90.24 | 1 | 0 | ||
| 34 | VIT0003107 | SPRING WASHER 4,3 | 90.24 | 1 | 0 | ||
| 35/a | Z0190014032NA | CUPS FORK D.80 | 569.43 | 1 | 0 | ||
| 35/b | Z0190014030NA | CUPS FORK D.70 | 576.65 | 1 | 0 | ||
| 35/c | Z0190014031NA | FORK D.73 (BLACK) | 590.19 | 1 | 0 | ||
| 36 | VIT0000030 | SCREW HEAD TAP CAP M4X7 | 90.24 | 1 | 0 | ||
| 37 | Z0020040235 | FLAP PLUG | 29.78 | 1 | 0 | ||
| 38/a | Z0190014033NA | DB UPPER COVER D.80 (BLACK) | 3 210.84 | 1 | 0 | ||
| 38/b | Z0190014014NA | LID SUPPORT DB 70/73 | 3 142.26 | 1 | 0 | ||
| 39 | Z0190014013NA | STIRRERS CHUTE REINFORC. BLACK | 453.02 | 1 | 0 | ||
| 40 | Z0190014040NA | DB BOARD COVER | 1 982.64 | 1 | 0 | ||
| 41 | VIT0002401 | SCREW ST HEAD CAP M3.5X9.5 | 90.24 | 1 | 0 | ||
| 42/a | Z0190014048NA | DB SUPPORT COVER D.80 (BLACK) | 1 193.91 | 1 | 0 | ||
| 42/b | Z0190014046NA | DB SUPPORT COVER D.70 (BLACK) | 2 401.36 | 1 | 0 | ||
| 43 | VIT0000012 | SCREW HEAD TAP CAP M4X10 | 90.24 | 1 | 0 | ||
| 44 | Z0090002047R2 | §MOTOR 18RPM 24V+PULLEY+REINF. | 7 779.84 | 1 | 0 | ||
| 45 | VIT0003108 | WASHER TAB D. 3.2 | 90.24 | 1 | 0 | ||
| 46 | Z0190014057 | BUSHING FIXING MOTOR | 219.29 | 1 | 0 | ||
| 100 | Z0190014050R | § CUP FORK MOVEMENT | 18 156.87 | 1 | 0 |
