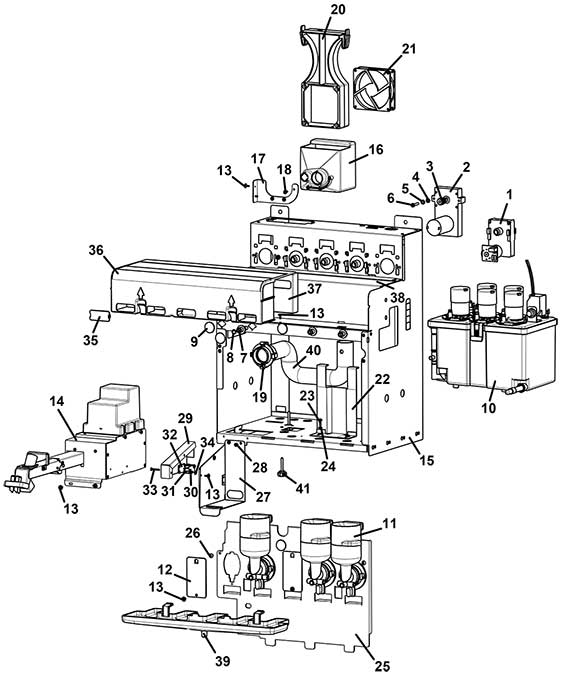

solubles dispenser H/5
LUCE X2 premium
Руководство
| № | Код | Название | Примечание | Цена, ₽ | Добавить | Мин. заказ | В корзине |
|---|---|---|---|---|---|---|---|
| 1 | Z0090002113R | MR NCJM2480-X 24VDC WITH BOARD | 2 868.47 | 1 | 0 | ||
| 2/a | Z0090002082 | MOTOR 24 DC 55 RPM | 6 683.09 | 1 | 0 | ||
| 2/b | Z0090002081 | MOTOR 24 DC 85 RPM | 6 683.09 | 1 | 0 | ||
| 3 | Z0230012010 | PINION | 44.50 | 1 | 0 | ||
| 4 | Z0090002079 | SPACER | 59.01 | 1 | 0 | ||
| 5 | VIT0003104 | SPRING WASHER 5,3 | 96.74 | 1 | 0 | ||
| 6 | VIT0000015 | SCREW HEAD TAP CAP M4X25 | 96.74 | 1 | 0 | ||
| 7/a | Z0080100043 | MIXER CONNECTOR BLACK | 41.60 | 1 | 0 | ||
| 7/b | Z0080100043-02PL | MIXER CONNECTOR-SHORT BLUE | 41.60 | 1 | 0 | ||
| 7/c | Z0080100043-02MD | MIXER CONNECTOR-SHORT GREEN | 41.60 | 1 | 0 | ||
| 7/d | Z0080100043-02IC | MIXER CONNECTOR-SHORT ORANGE | 41.60 | 1 | 0 | ||
| 8 | GUA0000089 | OR 2031 RED SILICONE A70 | 96.74 | 1 | 0 | ||
| 9 | Z0080100035NA | CONNECTOR PLUG BLACK | 34.83 | 1 | 0 | ||
| 10 | boiler | ||||||
| 11 | mixer | ||||||
| 12 | Z0010020028NA | MIXER PLUG BLACK | 65.79 | 1 | 0 | ||
| 13 | VIT0002401 | SCREW ST HEAD CAP M3.5X9.5 | 96.74 | 1 | 0 | ||
| 14 | distribution pipes movement | ||||||
| 15 | Z0070020001-09 | HOUSING H5 | 15 273.01 | 1 | 0 | ||
| 16 | Z0070020017CY | EXTRACTOR FUNNEL RAL9018 | 354.08 | 1 | 0 | ||
| 17 | Z0070020030 | FAN PLATE | 463.40 | 1 | 0 | ||
| 18 | VIT0002469 | SCREW HEAD TAP M3.5X10 | 96.74 | 1 | 0 | ||
| 19 | Z0070020019CY | EXTRATOR TUBE SUPPORT | 294.10 | 1 | 0 | ||
| 20 | Z0070020024IC | FAN SUPPORT RAL2011 | 475.98 | 1 | 0 | ||
| 21 | ELE0000468R | § FAN 24V DC-HIGH SPEED-D.92 | 3 689.82 | 1 | 0 | ||
| 22 | Z0070021013 | BOILER BRACKET | 4 250.94 | 1 | 0 | ||
| 23 | VIT0001005 | SCREW HEAD TAP CAP M4X12 | 96.74 | 1 | 0 | ||
| 24 | VIT0003109 | SPRING WASHER 4,3 | 96.74 | 1 | 0 | ||
| 25 | Z0070020011 | MIXER SUPPORT | 6 442.20 | 1 | 0 | ||
| 26 | VIT0000012 | SCREW HEAD TAP CAP M4X10 | 96.74 | 1 | 0 | ||
| 27 | Z0070020231 | PIPE SUPPORT GUIDE | 2 919.74 | 1 | 0 | ||
| 28 | VIT0002009 | SCREW ST HEAD CAP M3.5X6.5 | 96.74 | 1 | 0 | ||
| 29 | Z0070020037 | SWITCH COVER | 985.82 | 1 | 0 | ||
| 30 | ELE0001528 | MICROSWITCH | 451.80 | 1 | 0 | ||
| 31 | NL201106265 | MICRO LEVER | 198.33 | 1 | 0 | ||
| 32 | 4600010014 | SPACER | 42.57 | 1 | 0 | ||
| 33 | VIT0000006 | SCREW HEAD TAP CAP M3X16 | 96.74 | 1 | 0 | ||
| 34 | VIT0004701 | NUT M3 | 96.74 | 1 | 0 | ||
| 35 | Z0070014776 | TRAP PLUG | 59.01 | 1 | 0 | ||
| 36 | Z0070020012CY | EXTRACTOR DRAWER RAL9018 | 1 949.40 | 1 | 0 | ||
| 37 | Z0070020013CY | EXTRACTOR COVER RAL9018 | 1 073.86 | 1 | 0 | ||
| 38 | Z0070020004 | TRAP SUPPORT (BLACK) | 2 875.24 | 1 | 0 | ||
| 39 | Z0070020035CY | POWDER TRAY RAL9018 | 1 320.56 | 1 | 0 | ||
| 40 | TEOL000002 | EXTRACTOR TUBE D.30 | 1 871.03 | 1 | 0 | ||
| 41 | VIT0009164 | HANDLE | 1 015.81 | 1 | 0 |
