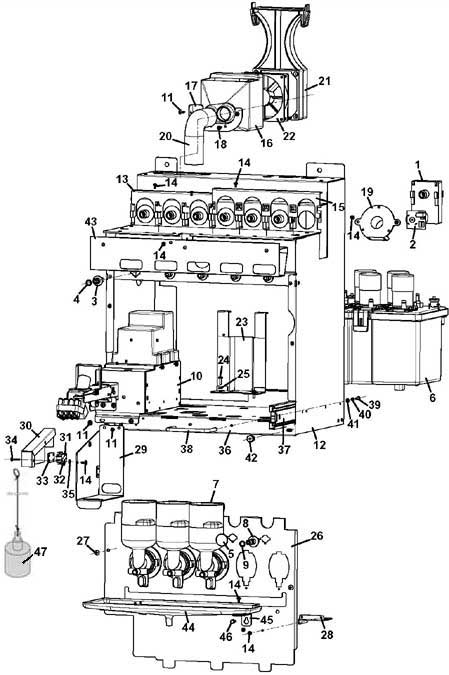

solubles dispenser H/7
LUCE X2 premium
Руководство
| № | Код | Название | Примечание | Цена, ₽ | Добавить | Мин. заказ | В корзине |
|---|---|---|---|---|---|---|---|
| 1 | Z0090002113 | MOTOR 24 DC 97 RPM | 2 007.44 | 1 | 0 | ||
| 2 | SCH0009100 | MOTORS FILTER | 1 467.61 | 1 | 0 | ||
| 3/a | Z0080100043 | MIXER CONNECTOR BLACK | 41.60 | 1 | 0 | ||
| 3/b | Z0080100043-02PL | MIXER CONNECTOR-SHORT BLUE | 41.60 | 1 | 0 | ||
| 3/c | Z0080100043-02MD | MIXER CONNECTOR-SHORT GREEN | 41.60 | 1 | 0 | ||
| 3/d | Z0080100043-02IC | MIXER CONNECTOR-SHORT ORANGE | 41.60 | 1 | 0 | ||
| 3/e | Z0080100043-02KA | MIXER CONNECTOR-SHORT RED | 41.60 | 1 | 0 | ||
| 4 | GUA0000089 | OR 2031 RED SILICONE A70 | 96.74 | 1 | 0 | ||
| 6 | boiler | ||||||
| 7 | mixer | ||||||
| 10 | distribution pipes movement | ||||||
| 11 | VIT0002401 | SCREW ST HEAD CAP M3.5X9.5 | 96.74 | 1 | 0 | ||
| 12 | Z0070021155 | HOUSING H7 | 16 729.97 | 1 | 0 | ||
| 13 | Z0070021014 | 3 PRD.MOTORS SUPPORT | 1 155.13 | 1 | 0 | ||
| 14 | VIT0002009 | SCREW ST HEAD CAP M3.5X6.5 | 96.74 | 1 | 0 | ||
| 15 | Z0070021015 | 4 PRD.MOTORS SUPPORT | 1 191.89 | 1 | 0 | ||
| 16 | Z0070020017CY | EXTRACTOR FUNNEL RAL9018 | 354.08 | 1 | 0 | ||
| 17 | Z0070020030 | FAN PLATE | 463.40 | 1 | 0 | ||
| 18 | VIT0002469 | SCREW HEAD TAP M3.5X10 | 96.74 | 1 | 0 | ||
| 19 | Z0010014071 | TRAP CONNECTOR | 176.07 | 1 | 0 | ||
| 20 | TEOL000002 | EXTRACTOR TUBE D.30 | 1 871.03 | 1 | 0 | ||
| 21 | Z0070020024IC | FAN SUPPORT RAL2011 | 475.98 | 1 | 0 | ||
| 22 | ELE0000468R | § FAN 24V DC-HIGH SPEED-D.92 | 3 689.82 | 1 | 0 | ||
| 23 | Z0070021013 | BOILER BRACKET | 4 250.94 | 1 | 0 | ||
| 24 | VIT0001005 | SCREW HEAD TAP CAP M4X12 | 96.74 | 1 | 0 | ||
| 25 | VIT0003109 | SPRING WASHER 4,3 | 96.74 | 1 | 0 | ||
| 26 | Z0070021162 | MIXER SUPPORT | 5 011.35 | 1 | 0 | ||
| 27 | VIT0000030 | SCREW HEAD TAP CAP M4X7 | 96.74 | 1 | 0 | ||
| 28 | Z0070020351 | CONNECTOR SUPPORT | 1 151.26 | 1 | 0 | ||
| 29 | Z0070020231 | PIPE SUPPORT GUIDE | 2 919.74 | 1 | 0 | ||
| 30 | Z0070020037 | SWITCH COVER | 985.82 | 1 | 0 | ||
| 31 | ELE0001528 | MICROSWITCH | 451.80 | 1 | 0 | ||
| 32 | NL201106265 | MICRO LEVER | 198.33 | 1 | 0 | ||
| 33 | 4600010014 | SPACER | 42.57 | 1 | 0 | ||
| 34 | VIT0000006 | SCREW HEAD TAP CAP M3X16 | 96.74 | 1 | 0 | ||
| 35 | VIT0004701 | NUT M3 | 96.74 | 1 | 0 | ||
| 36 | Z0070021012-03 | MIXERS HOUSING BOTTOM | 4 581.81 | 1 | 0 | ||
| 37 | Z0070015144 | TELESCOPICS GUIDE | 8 465.12 | 1 | 0 | ||
| 38 | Z0070015143 | BOTTOM EXTRACTABLE HANDLE | 2 184.48 | 1 | 0 | ||
| 39 | VIT0000004 | SCREW HEAD TAP CAP M3X10 | 96.74 | 1 | 0 | ||
| 40 | VIT0003102 | SPRING WASHER 3,2 | 96.74 | 1 | 0 | ||
| 41 | VIT0003002 | WASHER 3,2X7X0,5 | 96.74 | 1 | 0 | ||
| 42 | Z0180012157 | SCREW | 978.08 | 1 | 0 | ||
| 43 | Z0070021157 | TRAP H7 | 3 773.02 | 1 | 0 | ||
| 44 | Z0070021022NA | DUST COLLECTION TRAY | 5 824.97 | 1 | 0 | ||
| 45 | Z0070021023 | DUST TRAY FIXING PLATE | 492.43 | 1 | 0 | ||
| 46 | 4002010055 | PIN | 183.81 | 1 | 0 | ||
| 47 | Z0070020038CL2 | § WASTE FLOAT | 1 139.65 | 1 | 0 | ||
| 101 | Z0090002113R2 | § GEARBOX MOTOR 24V DC+FILTER | 3 535.03 | 1 | 0 |
